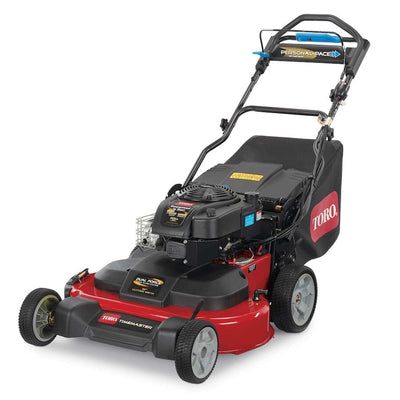

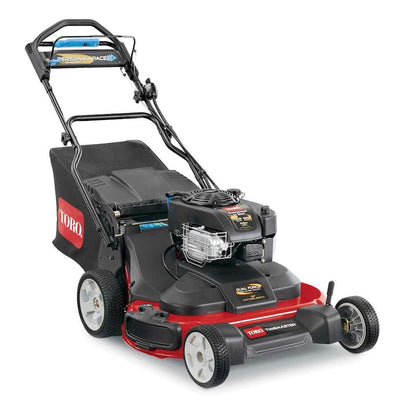

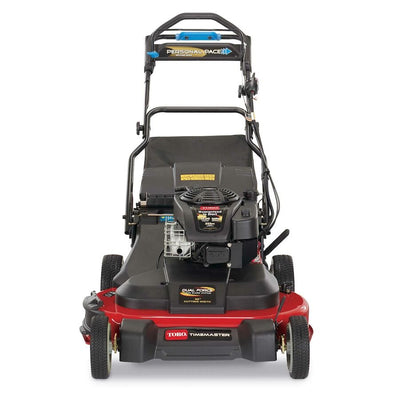

Toro TimeMaster Mower 10 TP 223cc Briggs ES Professional Engine (30″) #21220

Electric Power – A simple push of a button and you’re ready to go.
Big Power – You’ll enjoy great power and performance from a 10.00 ft.-lb. Gross Torque Briggs & Stratton^® 223cc OHV engine.
Time Saver – Finish jobs faster with the 30″ deck.
Dual-Force™ Cutting System – The Dual-Force cutting system and Toro® Atomic blades cut grass into a fine mulch for a superior quality of cut and a healthy, lush lawn.
Pick Your Pace – You control the mowing speed with Personal Pace®.
No Restarts – Leave the mower without restarts with Spin-Stop™ Blade Stop.
Quick Stow Storage Handle – The TimeMaster has two storage positions for easy compact storage and convenient handle height positions to insure a comfortable mowing experience for any operator.
2 Point Height-of-Cut – You can easily adjust the deck height at 2 points for quick customization of your mowing height.
Washout Port – Attach a hose to the mower deck to easily clean the under side of the deck.
3-Year Full Warranty & 3 Year Guaranteed-to-Start – Enjoy peace of mind knowing Toro stands behind its mowers with a 3-year guaranteed-to-start engine warranty and 3-year full warranty
Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more

Specifications

Air Filter	Briggs & Stratton Part #795066 – Not Sold on toro.com
Bagger Capacity	2.5 bushels
Blade Engagement	Blade Override System (BOS)
Box Dimensions	41.9 in. x 33.0 in. x 25.3 in. / 106.4 cm x 83.8 cm x 64.1 cm
Deck Design	Recycler®
Deck Material	13 Gauge Steel
Deck Size	30 in / 76 cm
Discharge Chute	Included
Drive System	Personal Pace® Rear Wheel Drive Traction Assist
Drive Type	Rear-Wheel Drive
Engine	10.00 ft-lb Gross Torque* Briggs & Stratton 223 cc OHV
Engine Brand	Briggs and Stratton
Engine Displacement (cc)	223 cc
Forward Ground/Transport Speed	Up to 4.5 mph / 7.2 kph
Forward Mowing Speed	Up to 4.5 mph / 7.2 kph
Frame	Cast-Aluminum Frame
Fuel Capacity	0.3 gal. / 1.1 L / 1.2 Qt.
Fuel Type	Gasoline
Guaranteed to Start Promise	3-Year GTS
Handle Type	Quick Stow Storage Handle
Height of Cut	1.25 – 4.25 in. / 3.2 – 10.8 cm
Height of Cut Adjustment	2-point
Included in the Box	18 oz. Bottle of Oil, Discharge Chute, Electric Start Charger, Grass Bag, Mower, Quick Start Guide
Mulch, Bag, Side Discharge	Bag standard, Mulch standard, Side discharge standard
Number of Blades	2
Product Features	Blade Stop System, Deck Washout Port, Electric Start, High Wheel, Self-Propelled
Product Type	Walk Behind Mowers
Product Use	Residential
Recommended Oil Type	SAE 30
Self Propel System	Personal Pace
Spark Plug Type	Briggs & Stratton Part #692051 – Not Sold on toro.com
Start Type	Push Button Start
Washout Port	Standard
Weight	145 lbs / 65.8 kg
Wheel Height	Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm
Yard Size	Up to 1 acre

Disclaimer

*The gross torque of this engine was laboratory rated at 2800 rpm per SAE J1940 by the engine manufacturer. As configured to meet safety, emission and operating requirements, the actual engine torque on this class of mower will be significantly lower.

**See dealer for warranty details.
