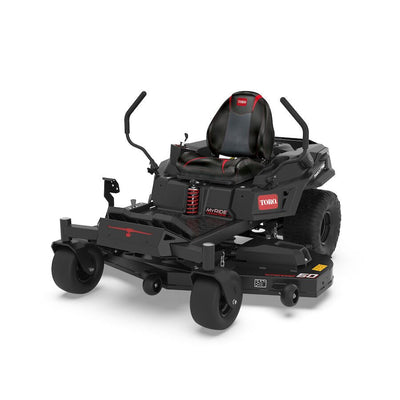

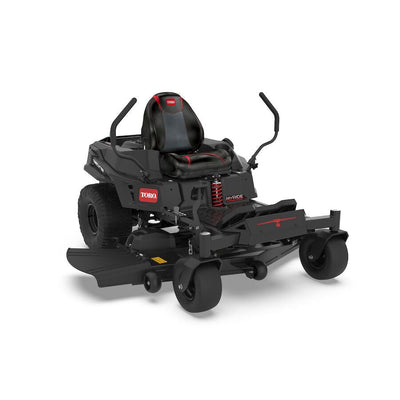

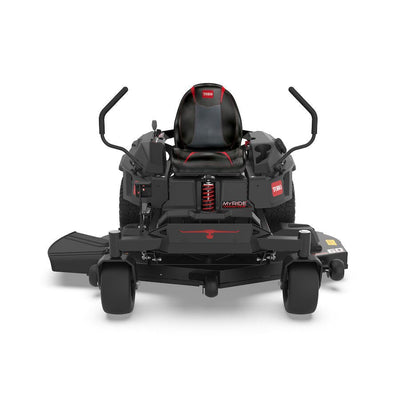

60 in. (152 cm) TimeCutter® Max Havoc MyRIDE® Zero Turn Mower

Featuring MyRIDE® Suspension System

Model: 77603

Patented MyRIDE^® Suspension sits isolated from the frame to save your back and accelerate your mow.
Over 100 years of Pro DNA course through the veins of every mower we build.
Its heavy duty steel IronForged^® Deck doesn’t flinch no matter what you throw its way.
The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
Spray blocking fenders keep tire spray off your engine, and more importantly, you.
Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
Aggressive paint job that says you don’t keep up with the Jones’, you are the Jones’.

Specifications

Air Filter	Standard Kawasaki Air Cleaner
Anti Scalp Wheels	3 Standard
Armrests	Optional (Not Included)
Bagger Capacity	79413 4.9 bushels (Not Included)
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Box Dimensions	82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm
CARB Compliant	Not CARB Compliant
Carrier Frame	3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires	13 in. x 6.5 in. – 6 in. (33 x 16.5 cm – 15.2 cm) Pneumatic
Clutch	Electromagnetic
Comfort Platform	MyRIDE^® Suspension System
Cooling System	Air Cooled
Crankshaft	1″ (25 mm) w/Steel Protector
Cup Holder	Standard
Cutter System	Steel Cutting Blade
Deck Design	10-Gauge steel IrongForged^®
Deck Material	10 Gauge Steel
Deck Size	60 in / 152 cm
Discharge Chute	Side
Drive System	Hydrostatic
Drive Tires	20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)
Drive Type	Rear-Wheel Drive
Engine	23 hp Kawasaki FR691V 726cc
Engine Brand	Kawasaki
Engine Displacement (cc)	726 cc
Engine Horsepower	23.0 hp
Engine Power (kW)	17.2 kW
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 7.0 mph / 11.2 kph
Forward Mowing Speed	Up to 7.0 mph / 11.2 kph
Frame	3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity	5 gal. / 18.9 L / 20 Qt.
Fuel Type	Gasoline
Greasable Bearings	Yes
Height of Cut	1.0 – 5.0 in. / 2.5 – 12.7 cm
Hitch Bracket	Standard
Hour Meter	Standard
Hydraulic Drive	Standard
Lighting	Optional (Not Included)
Number of Blades	3
Product Type	TimeCutter Max MyRide
Product Use	Residential
Recommended Oil Type	10W-30
Roll-Over Protection (ROPS)	Optional (Not Included)
Seat	19″ Gaming Style
Spindle Bearings	Maintenance-free
Spindle Housing	Cast-Aluminum
Start Type	Electric
Steering Controls	Twin Lever
Steering Dampeners	Standard Dampers
Terrain Type	Flat with Obstacles
Tires	13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
Transmission	Dual Hydrostatic HG-ZT2800
Washout Port	Standard
Weight	704 lbs / 319.3 kg

Disclaimer

*23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
