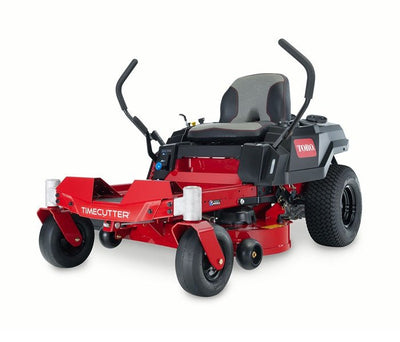

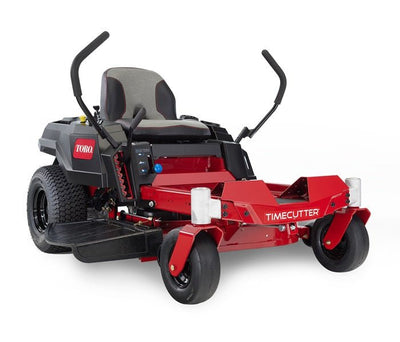

34″ (86 cm) TimeCutter® Zero Turn Mower (75734)

More Time For You – Cut mowing time up to 50%* with zero-turn steering, giving you a gorgeous lawn and more time to enjoy it.
Space Saver – The mower’s compact design and 34″ deck means you’ll have no trouble mowing in tight spaces or traveling between some gates.
Pick Your Pace – Take control over your mowing speed, while never sacrificing blade tip speed with Smart Speed® Technology.
Hassle-Free Maintenance – Spend less time maintaining your mower with toolless oil change and filter, and belt cover.

Engine
Kohler 22 hp**
Fuel Capacity
3 gal / 11.4 L
Cutting Width
34″ (86 cm)
Cup Holder
Standard
Ground Speed
Mow(F/R) 7 mph/3 mph, Tow(F/R) 5.5 mph/2.4 mph, Trim (F/R) 4 mph/1.7 mph
Height of Cut
1.5″ / 3.8 cm – 4.5″ / 11.4 cm
Hitch Bracket
Standard
Horsepower
22 hp**
Hour Meter
Optional
Seat
Standard
Steering Controls
Dual Wrap Around Levers
Tires
11″ x 4″ (27.9 cm x 10.2 cm) Front, 18″ x 6″ (45.7 cm x 15.2 cm) Rear
Transmission
Dual Hydrostatic
Disclaimer
*Time savings based on survey of consumers who purchased TimeCutters from 1/1/18-9/30/19. Time savings will vary.
**22 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kohler®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
See retailer for complete warranty details.
Accessory List (Not Included)

Model/Part #	Description
75734	TimeCutter 3400 Riding Mower – Serial # 400000000-99999999
79417	34in Residential Z Fab Bagger Gen 2
140-2059	DECK FOOTLIFT ASSIST KIT
140-3536	34in Recycling Kit
116-5461	Hourmeter Kit, 2011 and After Zero-Turn-Radius Riding Mower
140-8374	34in Striping Kit
140-2056	LED Light Kit
140-2058	ARMREST KIT
140-2060	FLOORMAT KIT
117-0096	SEAT COVER W/O ARM REST – TC 18IN
140-2052	ENTRY ASSIST BAR KIT
140-2057	DELUXE SEAT KIT
140-2711	JACK MOUNT KIT
127-6666	Jack Kit, Zero-Turn-Radius Side-Discharge or Rear-Discharge Riding Mow
490-7516	COVER
140-5134-03	Blade 17.50 Recycling
140-8369	34in Bagging Enhancement Kit
140-2050	FRONT WEIGHT KIT
79485	ROPS KIT
79486	SLOPE SENSOR KIT, TIMECUTTER

Toro Timecutter 22hp Kohler Engine 34″ FAB Deck Z-Turn Mower #75734
