34 in. (86 cm) TimeCutter® Zero Turn Mower

Built to tackle big jobs while fitting in small spaces.
Built Like a Bull – IronForged^® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
Take control over your mowing speed, while never sacrificing blade tip speed.
Step-Through Front End – Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
Storage Cubby – Now there’s a convenient and safe space in your under-seat cubby to store important items.
Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
Commercial DNA courses through these machines’ veins with the same technology pros depend on.
Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more

The ultimate zero-turn mower for tackling big lawn jobs while also fitting in small spaces. This small but mighty TimeCutter with powerful 22 HP* V-Twin Briggs & Stratton engine and 34″ IronForged^® deck allows you to create both a beautiful lawn and have more time than ever to enjoy it. The mower’s compact design makes for easy storage. Toro stands behind its mowers with a 3-year, 300-hour commercial engine limited warranty.† And as a Toro owner you’ll have access to more than 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Specifications

Air Filter	Standard Briggs & Stratton Air Cleaner
Anti Scalp Wheels	2 Standard
Armrests	Optional
Bagger Capacity	4.9 bushels
Blade Design	0.164 in. / 0.417 cm Steel with Blade Stiffner
Blade Tip Speed	18,179 ft/min / 5,541 m/min
CARB Compliant	Not CARB Compliant
Caster Tires	11 in. x 4 in. – 5 in. Pneumatic
Clutch	Electromagnetic
Cooling System	Air Cooled
Crankshaft	1″ (25 mm) w/Steel Protector
Cup Holder	Standard
Cutter System	Steel Cutting Blade
Cutting Width	34 in / 86 cm
Deck Design	10-Gauge steel IrongForged^®
Deck Material	10 Gauge Steel
Discharge Chute	Side
Drive System	HYDRO
Drive Tires	18 in. x 6 in. – 8 in. (45.7 cm x 15.2 cm – 20.3 cm)
Drive Type	Rear-Wheel Drive
Engine	22 hp Briggs and Stratton EXI 724cc
Engine Brand	Briggs and Stratton
Engine Displacement (cc)	724 cc
Engine Horsepower	22.0 hp
Engine Power (kW)	16.4 kW
Foot Operated Height of Cut	Optional
Forward Ground/Transport Speed	Up to 7.0 mph / 11.2 kph
Forward Mowing Speed	Up to 7.0 mph / 11.2 kph
Fuel Capacity	3 gal. / 11.4 L / 12 Qt.
Fuel Type	Gasoline
Greasable Bearings	Yes
Height of Cut	1.5 – 4.5 in. / 3.8 – 11.4 cm
Hitch Bracket	Standard
Hour Meter	Optional
Hydraulic Dampeners	Yes, Non-Cavitating
Hydraulic Drive	Standard
Number of Blades	2
Product Type	TimeCutter
Product Use	Residential
Recommended Oil Type	10W-30
Roll-Over Protection (ROPS)	Optional
Seat	16″ Handcrafted
Spindle Bearings	Maintenance-free
Spindle Housing	Cast-Aluminum
Start Type	Electric
Steering Controls	Dual Wrap Around Levers
Steering Dampeners	Standard Dampers
Terrain Type	Flat with Obstacles
Tow Capacity	Combined machine, user, towed weight may not exceed 1,000 lbs.
Transmission	Dual Hydrostatic HG-EZT2100
Washout Port	Standard

Disclaimer

*22 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Briggs & Stratton®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.†See retailer for complete warranty details.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.

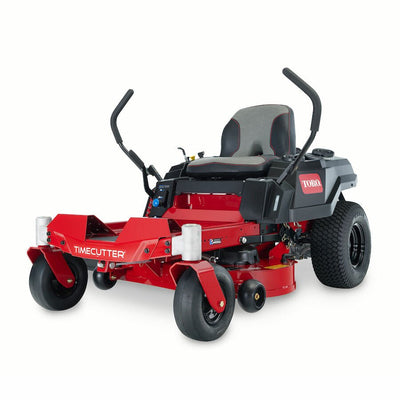

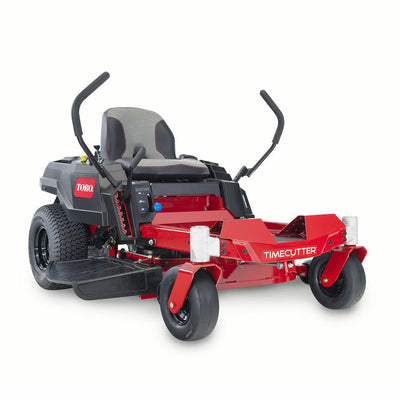

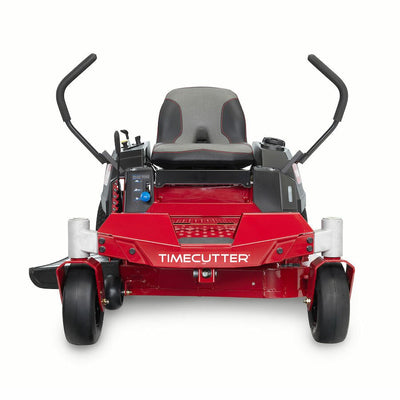

Toro Timecutter 22hp 724cc Briggs & Stratton Engine 34″ FAB Deck Z-Turn Mower #77301
