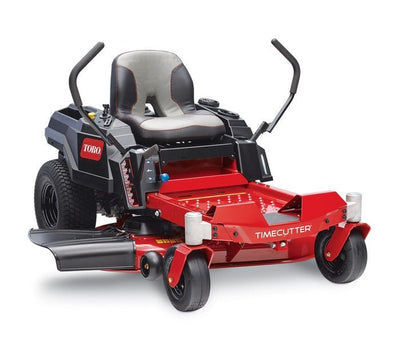

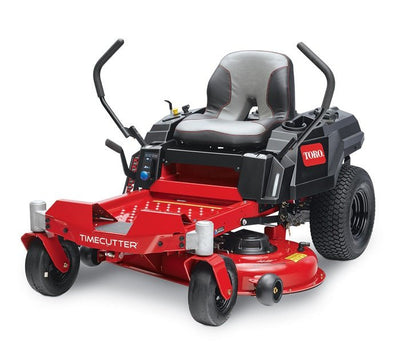

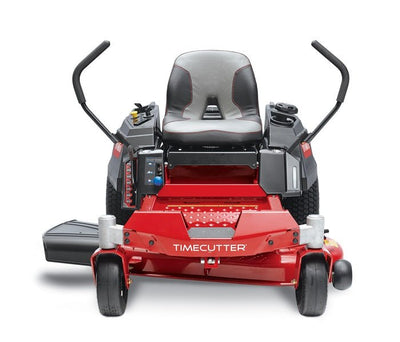

Toro 77401 TIMECUTTER Z-Turn Mower 22hp Briggs & Stratton V-Twin Engine w/42″ Stamped Deck

Tackle everything on your “Honey-Do” list and still make it in time for all the summer fun with Toro’s 42″ TimeCutter. The mower’s compact design makes for easy storage, and features like a step-through front end, built-in cupholder and storage cubby give you the ultimate in convenience. It’s also a snap to control with Toro’s Smart Speed® Technology, which adjusts to your pace for easy maneuverability. Pinpoint quality cuts and zero-turn mowing are just two pro commercial contractor features that put Toro’s cutting-edge technology and world-class craftmanship into the hands of homeowners. And you can rest easy knowing Toro stands behind its mowers with a 3-year unlimited hour residential warranty, plus 3-year, 300-hour commercial engine warranty. And as a Toro owner, you’ll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Cup Holder – Stay cool and hydrated with a built-in cup holder.
Wide Rear Tires – Wide tires to reduce rutting in soft ground.
Pro DNA – Commercial DNA courses through these machines’ veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.
Step-Through Front End – Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
Toolless Oil Change – Spend less time maintaining your mower with toolless oil change and filter.
Handcrafted Seat – Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
Storage Cubby – Now there’s a convenient and safe space in your under-seat cubby to store important items.
Pick Your Pace – Take control over your mowing speed, while never sacrificing blade tip speed with Smart Speed® Technology.
Download the MyToro App from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more.

Specifications

Blade Tip Speed	17,810 ft/min / 5,428 m/min
Box Dimensions	82 in. x 49 in. x 35 in. / 208.3 cm x 124.5 cm x 88.9 cm
CARB Compliant	Not CARB Compliant
Caster Tires	11 in. x 4 in. (27.9 cm x 10.2 cm)
Controls	Dual Wrap Around Levers
Cup Holder	Standard
Cutting Width	42 in. / 107 cm
Deck Design	42″ Stamped Deck
Deck Material	13 Gauge Steel
Discharge Chute	Side
Drive Tires	18 in. x 7.5 in. (45.7 cm x 19 cm)
Drive Type	Rear-Wheel Drive
Engine	22 hp Briggs & Stratton
Engine Brand	Briggs and Stratton
Engine Horsepower	22.0 hp
Foot Operated Height of Cut	Optional
Forward Ground/Transport Speed	Up to 7.0 mph / 11.2 kph
Fuel Capacity	3 gal. / 11.4 L / 12 Qt.
Fuel Type	Gasoline
Height of Cut	1.5 – 4.5 in. / 3.8 – 11.4 cm
Hitch Bracket	Standard
Hour Meter	Optional
Included in the Box	1 Battery, Engine Oil
Number of Blades	2
Product Features	Cup Holder, Electric Start, Foot Operated Height of Cut, Hitch Bracket, Low Back Seat, Smart Speed, Tool-less Oil Change
Product Use	Residential
Recommended Oil Type	10W-30
Seat	16″ Handcrafted
Start Type	Electric
Steering Controls	Dual Wrap Around Levers
Steering Dampeners	Pro-Control Dampers
Terrain Type	Flat with Obstacles
Tires	11 in. x 4 in. (27.9 cm x 10.2 cm) Front, 18 in. x 7.5 in. (45.7 cm x 19 cm) Rear
Tow Speed	Up to 4.0 mph / 6.4 kph
Transmission	Dual Hydrostatic HG-ZT2100
Trim Speed	Up to 5.5 mph / 8.8 kph
Washout Port	Standard
Wheel Height	Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm
Yard Size	Up to 2 acres

Attachments and Accessories (Not Included) For 75748 TimeCutter 4225 Riding Mower
Product Name	Model/Part
Twin Bagger, Timecutter 42in Stamped	79410
42in Recycler Kit	137-7042
Bagging Enhancement Kit	137-7048
Striping Kit, 42in and Riding Mowers	140-5198
Hourmeter Kit	116-5461
Front Weight Kit	140-2050
Assist Bar Kit	140-2052
ROPS Kit	79485
Slope Sensor Kit	79486
LED Light Kit	140-2056
Deluxe Seat Kit	140-2057
Armrest Kit	140-2058
Deck Footlift Assist Kit	140-2059
Floormat Kit	140-2060
Jack Mount Kit	140-2711
Jack Kit	127-6666
Replacement Blade Kit	137-1999-03P
Storage Cover	490-7516
Seat Cover W/O Arm Rest – TC 18in	117-0096
4-Cycle Fuel, Snow And Lawn 32oz Can	131-3823
Heavy Duty Air Cleaner Kit	135-6195
Fuel Stabilizer 05 oz	130-2393
Toro Premium Fuel Treatment 12 Oz Bottle	131-6572
10w30 4-Cycle Engine Oil (32oz Bottle)	38280
Toro 4-Cycle SAE 30 Oil (32oz Bottle)	38903

Mower Deck Drive Belt, TimeCutter SS Riding Mower with 42-inch Mowing Deck
