Courier™ Zero Turn Mower
COMPACT COMFORT & VERSATILITY
Simplicity’s entry-level zero turn is anything but basic. The Courier offers the performance and premium features to make quick work of your lawn. With a wide variety of deck sizes starting at 36 inches, there is a Courier for any property. Add the optional integrated cargo bed and the Courier transforms into a versatile yard workhorse.

FEATURES

COMMERCIALLY-INSPIRED DESIGN
A fully-welded steel frame, thick-walled pivoting front axle, durable mower deck and ball bearings in the castor spindles ensure durability and a quality cut for years to come. Plus, an integrated parking brake adds even more convenience and ease-of-use.
MORE THAN JUST A ZERO TURN MOWER
Though it offers a great quality of cut, the integrated rear cargo bed+ along with its other great features make the Courier™ a versatile workhorse in a category of its own.
FOOT-OPERATED HEIGHT-OF-CUT
Easily adjust between 13 different height-of-cut positions from 1.5 to 4.5 inches.
SUSPENSION COMFORT SYSTEM™
The exclusive Suspension Comfort System™ (select models) complete with front or front & rear suspension allows you to feel 25% less impact while operating, resulting in enhanced comfort versus a non-suspension zero turn mower. Plus, an ergonomic mesh seat keeps you cool and comfortable. Note: Results of suspension depend on grass/yard conditions.

Model

2691659

Marketing Model

23/48

Engine Brand

Briggs & Stratton^®

Engine Model

PXi Series™

Start Type

Electric, Key

Power Rating *

23

Cylinders

2

Choke/Throttle

ReadyStart^®, Single Lever

Engine Displacement (cc)

724

Fuel Tank Capacity (gal)

3

Battery (cca)

230

Transmission Type

Hydro-Gear^® EZT^®

Ground Speed-Fwd (mph)

0 – 7

Ground Speed-Rev (mph)

0 – 4

Brake

Cog Style

Frame

12-Gauge Steel

Front Tires (in)

11 x 6-5 / 4-Ply Smooth

Front Axle

Steel Pivoting

Rear Tires (in)

20 x 10 – 8 / Turf

Seat

15″ Mesh

Suspension

SCS, Front & Rear

Cutting Width (in)

48

Mower Deck Type

Fabricated

Height-of-Cut (in)

1.5-4.5

Height-of-Cut Positions

13

Number of Blades

3

Mower Deck Removal

Frame Mounted

Anti-Scalp Wheels

2-Front

Spindle

Aluminum w/ Grease Zerk

Cargo Bed +

Standard

Steering

Twin-Levers

Headlights

Optional

Cup Holder

Standard, 2

Bumper

Steel

Roll Over Protection (ROPS)

N/A

Assembled Width (in)

59

Assembled Height (in)

42

Assembled Length (in)

72

Consumer Warranty (Product) **

3-Years

Commercial Warranty (Product) **

90-Days

Fabricated Mower Deck Warranty **

Lifetime

Blade Type

Electric PTO Switch

Fuel Gauge Location

Standard Gauge / On Fuel Tank

Rear Fenders

Standard, Steel Rear

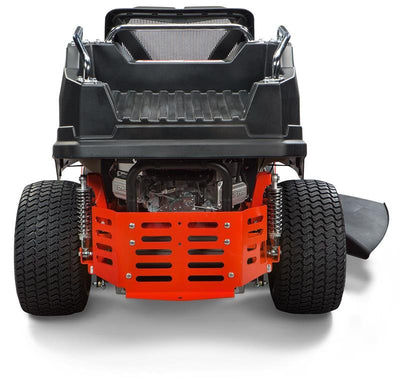

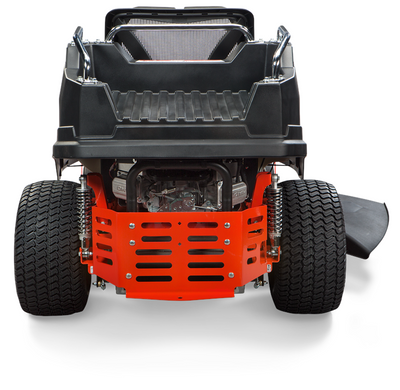

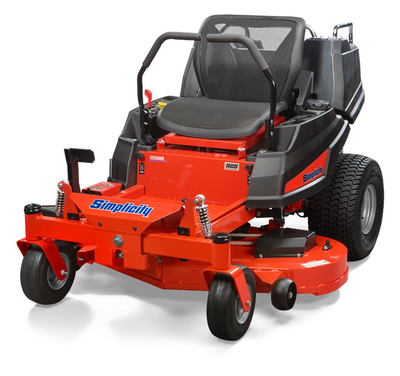

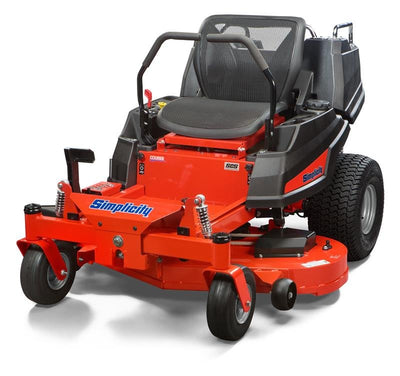

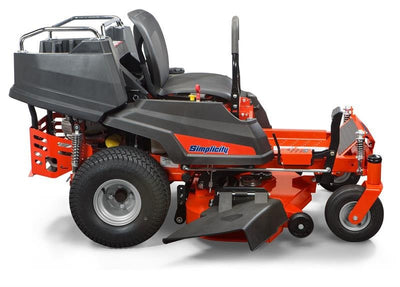

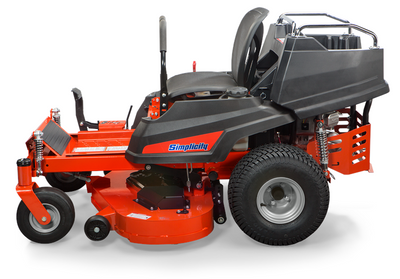

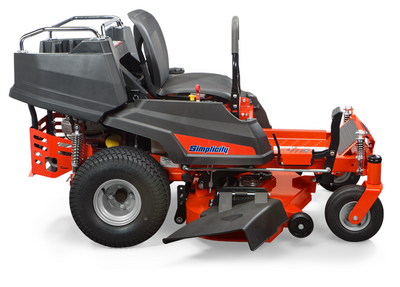

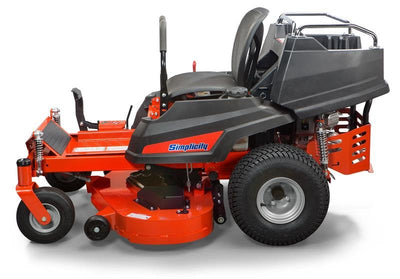

Simplicity Courier 23HP 724cc Briggs 48″ FAB Z-Turn Suspension Mower w/ CARGO BED #2691659
