Overview

For homeowners who don’t just want to mow their lawn but prefer to manicure it. After all, this is a residential mower often mistaken for a commercial unit. It has the power, durability, and high performance that lawn aficionados demand – causing them to ask whether or not their lawn is worthy of such a machine.

Power Train
Model Number	991277
Engine	Kawasaki® FR691V
Horsepower	23
Engine Displacement	44.3 in / 726 cc
Fuel Capacity	5.1 gal / 19.3 ltr
Drive System	Hydro-Gear® ZT-3100® Transaxles
Transmission Type	Hydrostatic
Brake Type	Lever Activated Parking
Driver Position	Sit
Ground Speed Forward	8 mph / 12.9 kph
Ground Speed Reverse	4 mph / 6.4 kph
Wheels Front	13.0 x 6.5 in – 6.0 in (33.0 x 16.5 cm – 33.0 cm)
Wheels Rear	22.0 x 11.0 in – 10.0 in (55.9 x 27.9 cm – 25.4 cm)
Electric
Battery Capacity	190 CCA
Number of Batteries	1
Battery Voltage	12
Battery Type	AGM
Battery Size	U1 Compatible
Deck
Deck Size	52 in / 132.1 cm
Coverage Hour	4.2 acres / 1.7 hectares
Spindle Type	Mechanical
Deck Material	7 ga
Deck Construction	Fabricated X-Factor® 3
Discharge Configuration	Side
Cutting Height Min	1.5 in / 3.8 cm
Cutting Height Max	5 in / 12.7 cm
Cutting Width	52 in / 132.1 cm
Dimensions
Weight (assembled)	817 lb
Length	79 in / 200.7 cm
Width (Chute Up)	56.2 in / 142.7 cm
Width (Chute Down)	67.3 in / 170.9 cm

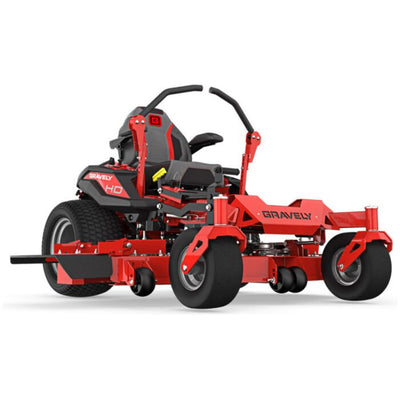

Gravely ZT HD 52 Zero Turn Mower Kawasaki
