Dannmar DB-70 Automatic Wheel Balancer 10″-28″ Rim Capacity
Your shop can install new brake rotors, pads, and tires on your customer’s car, but they will judge everything they paid for on how perfectly their tires were balanced. Give them everything they deserve and know that a vibration-free tire balance with Dannmar’s DB-70 Wheel Balancer is the shining star on your work.

Smooth Dannmar wheel balancer performance is available for both you and your customers. And best of all, Dannmar wheel balancer equipment is easy for your techs to operate and affordable for your shop. With many years of refining our balancing technologies, our wheel balancers have achieved unsurpassed quality. Dannmar’s time-tested direct-drive system has spot-on accuracy ensuring that wheels are balanced and vibration-free. Wheel balancers are essential tools and revenue generators for professional auto and tire shops. Almost every customer who purchases new tires will want to add full wheel balancing to their repair order. Increase your sales and customer’s vehicle satisfaction with a Dannmar wheel balancer.

Dannmar’s DB-70 Wheel Balancer Keeps Everything Running Smoothly

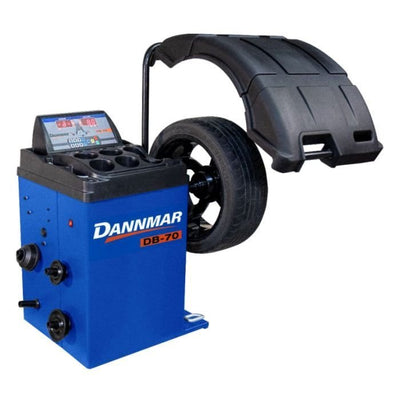

Dannmar’s DB-70 wheel balancer handles wheels up to 28″ diameter. The DB-70 is a highly accurate and dependable balancer that features Dannmar’s Digital Sensor Technology providing excellent reliability.

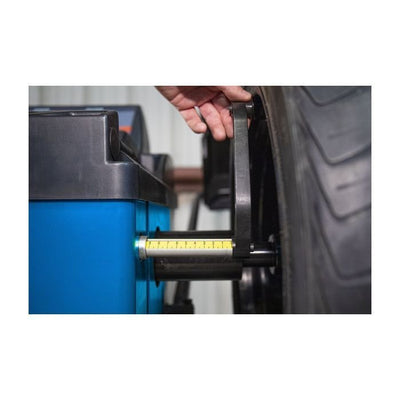

Most wheels can be quickly mounted to the balancer with the DB-70’s multi-size center cones. The full rubber perimeter no-mar “Quick-Nut” bell adapter carefully and tightly secures the tire and wheel.

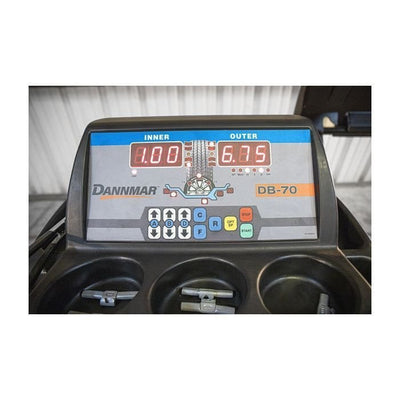

An easy touch-pad panel displays tire and wheel assembly graphics. This helps simplify entry of wheel data and supports technicians through balancing procedures.

With the wheel setup on the balancer, the DB-70 automatically calculates the precise weight required to achieve an optimal balance. The brightly displayed LEDs indicate the exact amount and location of weight in just seven seconds. A full menu of time-saving features, including Dynamic and Static settings, allows you to balance most wheels with minimal effort and quick speed.

Dannmar’s DB-70 wheel balancer is ruggedly built and provides perfectly balanced wheels every time. With a proven dynamic and static wheel balancer to ensure smooth-spinning results, Dannmar provides a machine your technicians can use to keep the workflow moving and your busy customers happy.

Features and Specs

Features

(6) Dynamic Balancing Modes
(1) Static Balancing Mode
Manual Wheel Offset Distance Setting
Auto-Start when Hood is Lowered

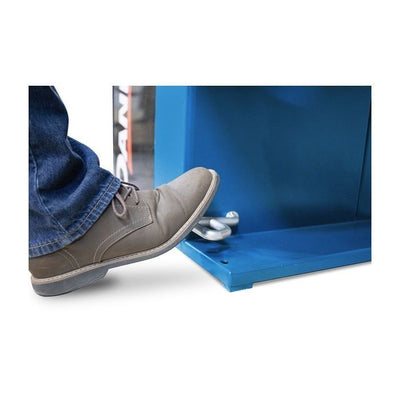

Wheel Holding Manual Brake Pedal
Truck Cone / Spacer Ring Adapter Set
No-Mar Rear Cone Mount Pressure Cup
Quick-Release and Mount Hub Nut
LED Rolling Wheel Weight Displays
Easy-To-Use Controls

Specifications

Motor: 110-230 VAC, 50-60 Hz, 1-Ph
Cycle Time: 7 seconds
Balancing Modes: 6 Dynamic / 1 Static
Drive System: Serpentine Poly-V Belt
Wheel Braking: Lever Caliper Brake / Foot Pedal
Cones Included: 4
Max. Tire Diameter: 49″ (1,247 mm)
Max. Tire Weight: 150 lbs. (68 kg)
Wheel Diameter Capacity: 10″ – 28″ (254 mm – 711 mm)
Wheel Width Capacity: 1.5″ – 20″ (38 mm – 508 mm)
Balancing Increments: 0.25 or 0.01 ounce
Balancing Speed: 260 RPM
Accuracy: +- 1 Gram (.035 oz)
Noise: <70 dB

One-Year Limited Warranty

One Year (12-Months) Warranty on Equipment Structure [*] [**]
One Year (12-Months) Warranty on Operating Components [*] [**]
One Year (12-Months) Free-Shipping** on Ground-Freight Charges Related to Warranty Performance [*] [**]

*As determined by Warrantor in its sole discretion. Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
