Designed to go wherever you do, the new advanced portable inverter generators by Cummins, bring together efficiency, durability and performance to deliver three of our most versatile and reliable products ever, all backed by the Cummins 24/7 global support network to ensure that you’ll always have power for when you need it most.

The Cummins Onan P4500i is rated at 3700 running watts and 4500 peak watts. The generator is both quiet and portable. A pair of rear wheels and handle allow you to easily move the 98lb generator where you need it. With an operating noise down to 52 dBA you can still enjoy the sounds of the great outdoors or talk without shouting or raising your voice. In addition to being portable and quiet, the Onan P4500i features remote start with a factory paired remote fob, push button starting at the control panel, and recoil starting as a backup.

OVERVIEW (LEFT COLUMN)

Overview (Right Column)

	Brand new in box
	3 year limited manufacturer’s warranty
	Fast free shipping
	Authorized Cummins dealer

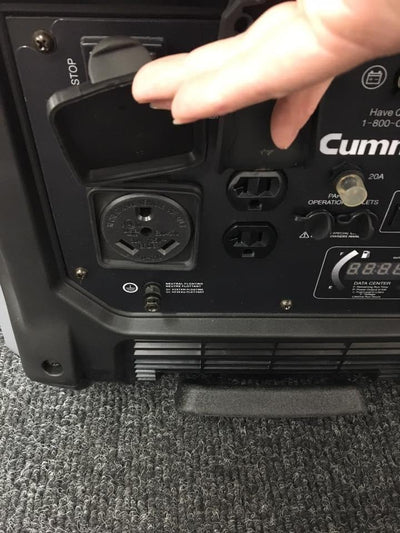

Outlets

(2) 5-20R
(1)TT-30R

Features (Left Column)

RV and camper ready with 30A TT-30R outlet.
Two 5V USB ports for charging sensitive electronics such as phones or tablets.

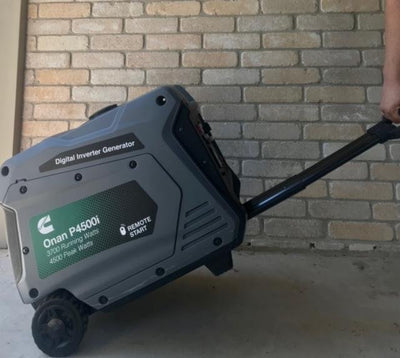

Telescoping handle and wheels for easy transportation.
Push button and remote start capabilities, with pull cord backup, make startup as easy as the push of a button.
Overload protection

Features (Right Column)

Dependable 7.3 HP 224cc OHV 4-Stroke engine.
Parallel capable with another P4500 inverter generator to reach 50A of power.
Runs 18 hours in continuous operation (at 25% load factor) on a single tank of gasoline.

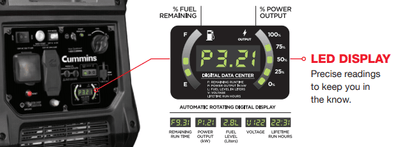

Essential data from power output and fuel level to remaining run-time, the digital displays give you critical facts at a glance.

Product Specifications (Left Column)

PEAK WATTS	4500
RUNNING WATTS	3700
PEAK AMPS @ 120V	37.5 AMPS
RUNNING AMPS AT 120V	30.8 AMPS
A/C VOLTAGE	120V
DC VOLTAGE	5V
AC FREQUENCY	60HZ
PARALLEL CAPABLE	YES
ENGINE HORSE POWER	7.3 HP
TOTAL HARMONIC DISTORTION	3%
AUTOMATIC VOLTAGE REGULATOR	YES
STARTING SYSTEM	ELECTRIC, REMOTE, RECOIL
BATTERY INCLUDED	YES
BATTERY CHARGER INCLUDED	YES
REMOTE START FOB INDLUDED	YES (PAIRED AT FACTORY)
REMOTE START DISTANCE (YARDS/METERS)	109 YD. (100M)
ENGINE DISPALCEMENT	224CC
ENGINE BRAND	DUCAR
ENGINE TYPE	OHV 4 STROKE
ENGINE SPEED	VARIABLE
ENGINE RPM	MAX 3600
OPERATIONAL VOLUME	AS LOW AS 52dBA
SPARK PLUG (INCLUDED)	TORCH E6RTC
CARBURETOR KIT REQUIRED TO OPERATE AT ALTITIDE	YES, ABOVE 2000FT
ECONOMY MODE SWITCH	YES
BUILT IN INVERTER	YES
ENGINE LUBRICATION	SPLASH
RECOMMENDED OIL	SAE 10W30
OIL BOTTLE SIZE (INCLUDED)	.6QT
OIL CAPACITY	.6QT
LOW OIL SHUTDOWN	AUTOMATIC
FUEL TYPE	UNLEADED GASOLINE, 10% ETHANOL OR LESS
FUEL SHUT OFF	MANUAL

Product Specifications (Right Column)

FUEL TANK MATERIAL	STEEL
FUEL TANK CAPACITY	3.4 GAL
RUN TIME AT 25% LOAD	18 HRS
RUN TIME AT 50% LOAD	15 HRS
GASOLINE FUEL GAUGE	YES
CHOKE TYPE	AUTOMATIC
AC OUTLETS	(1) 120V 30A (TT-30R) (1) DUPLEX 120V 20A (5-20R)
DC OUTLETS	(2) 5V USB PORTS
GROUND	FLOATING NEUTRAL
COVERED OUTLETS	YES
TRANSFER SWITCH READY	NO
GFCI OUTLETS	NO
LED DATA CENTER	YES
RV READY OUTLET	YES
OVERLOAD PROTECTION	YES
HANDLE STYLE	TELESCOPING HANDLE
EMISSIONS	EPA, CARB
CANADA CSA COMPLIANT	YES
WHEEL KIT INCLUDED	YES, ASSEMBLED
SPARK ARRESTOR	YES
WHEEL SIZE	5.5″ DIAMETER, 1.5″ THICK
ASSEMBLED DIMENSIONS	24.5″ x 18.25″ x 20.5″
DRY WEIGHT	98 LB

Package Contents:

CUMMINS ONAN P4500i GAS INVERTER GENERATOR
BATTERY
KEY FOB
MANUAL
QUICK START GUIDE
OIL
FUNNEL
TOOL KIT

WARRANTY

This item comes with a 3 year factory warranty.

Manuals & Documentation
User’s Manual Specification Sheet	Cummins Accessories

Cummins P4500i 3700W/4500W Onan A058U955 Remote Start Portable Gas Inverter Generator New
