The Champion Power Equipment 100174 8.5-kW Home Standby Generator with an ATS50 Indoor-Rated Automatic Transfer Switch is The Simple Solution™ to a power outage. Enjoy peace of mind while ensuring security and convenience for your family during an emergency.

The generator starts automatically when the power goes out and returns to standby when power is restored. The 24-volt starting system operates in temperatures ranging from -22° F to 104° F with no warming kit necessary.

You’ll have the starting power you need during an emergency since the onboard battery charger maintains the charge at all times, plus, since the generator is connected to your propane or natural gas system, it never needs refueling. This unit also performs weekly self-diagnostic tests.

An all-weather, composite mounting pad is included for easy installation, plus the steel enclosure protects your generator from the elements. The ATS50 automatic transfer switch operates a 50 amp, 12 circuit load (8 space sub-panel allows up to 4 tandem breakers). It is ideal for homeowners who want to power emergency essentials during a power outage as opposed to the whole house. It is housed in a NEMA 1 rated enclosure for indoor use (indoor switch not recommended for CA installation, see model #100177).

Our innovative gull-wing design provides easy access to the engine and control panel and allows a full view of the onboard control system.

The Champion 439cc OHV engine provides 8.5-kilowatts of continuous power on propane and 7.5-kilowatts on natural gas. This 8.5-kW-rated unit produces 35.4 amps at 240 volts on propane and 31.3 amps at 240 volts on natural gas.

The sound-dampening lining and low-tone muffler reduce noise through a unique baffle system and make this unit the quietest in its class. The residential-friendly 59.5 dBA has about the same noise level as normal conversation.

The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.

This generator is available for all 50 states, and the ATS50 is UL and cUL listed in the US and Canada. Buy with confidence – Champion Support and our nationwide network of service centers will back your purchase up with a 10-year limited warranty and FREE lifetime technical support.

What’s included

Oil Drain Pan
Flexible Fuel Line
HSB Enclosure Keys
Battery Cables & Hardware
LPG Jets
Jet Change Tool

Totally Automatic

The ATS50 Emergency Essentials Automatic Transfer Switch has 12 available circuits available and provides seamless power to your home during an outage

Quietest-in-Class

Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 59.5 dBA noise level

Reliable

24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no warming kit necessary, plus the generator performs weekly self-diagnostic tests

Powerful

The 8.5-kilowatt generator provides 8500 watts of continuous power on propane and 7500 watts on natural gas, with no refueling, no manual operation and no extension cords needed

Champion Support

Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts

Specs

Specs

Propane Rated Watts	8500W
Natural Gas Rated Watts	7500W
Propane Rated Amps at 120V	70.8A
Propane Rated Amps at 240V	35.4A
Natural Gas Rated Amps at 120V	62.5A
Natural Gas Rated Amps at 240V	31.3A
Rated Volts	120/240
Rated Frequency	60Hz
Phase	Single
Propane Fuel Consumption at 1/2 Load	1.0 gal/h
Propane Fuel Consumption at Full load	1.5 gal/h
Natural Gas Fuel Consumption at 1/2 Load	97.5 ft3/h
Natural Gas Fuel Consumption at Full Load	139.8 ft3/h
Main Line Circuit Breaker	35.5A
Starting System	Automatic 24V
Operational Volume	59.5 dBA
Cooling System	Air Cooled
AC Ton Rating	3T
Generator Enclosure	Steel
Generator Mounting Pad	Composite
Engine Brand	Champion
Engine Size	439cc
Engine Type	4-stroke
Engine Speed	3600
Fuel Type	Propane (LPG), Natural Gas (NG)
Engine Oil Type	Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity	1.2 qt.
Engine Oil Included	No
Low Oil Shut-Off	Yes
UL Listing	cULus
EPA Certified	Yes
Switch Amps	50A
Switch Volts	120/240
Switch Type	Select Circuit
Switch Circuits	12
Switch Poles	2
Load Management	No
Service Entry Rated	No
Switch Enclosure	NEMA 3R

Dimensions

Length	50.0 in.
Width	30.1 in.
Height	40.2 in.
Weight	386.1 lb.

Downloads

Downloads

Operator’s Manual

Product	Download
Generator (Models 100199, 100136, 100237)	Installation Manual for Generator (Models 100199, 100136, 100237) in English Installation Manual for Generator (Models 100199, 100136, 100237) in Français
Transfer Switch (Models 100947, 100950, 100949, 100952)	Installation Manual for Transfer Switch (Models 100947, 100950, 100949, 100952) in English
Transfer Switch Selector (50-100A Models)	Installation Manual for Transfer Switch Selector (50-100A Models) in English
Installation Rough-In (Select Circuit Systems)	Installation Manual for Installation Rough-In (Select Circuit Systems) in English

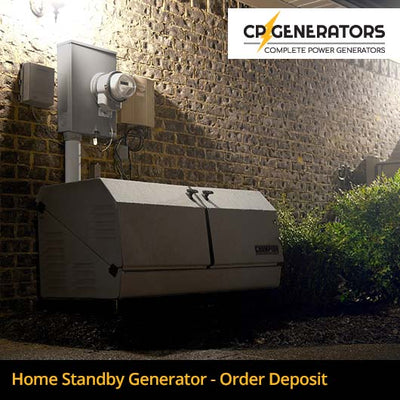

Champion 8.5-kW Home Standby Generator with 50-Amp Indoor-Rated Switch (US & CA)
