Description

Description

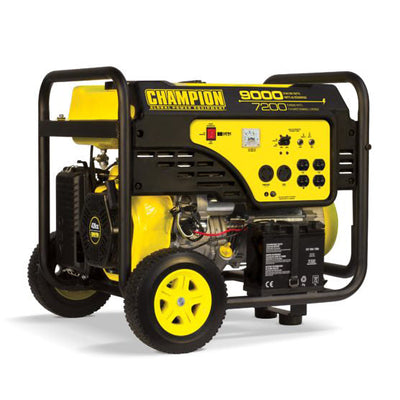

The Champion Power Equipment 100248 7200-Watt Portable Generator is designed with your safety and convenience in mind. A cost-effective solution that delivers power and peace of mind, this generator will provide all the backup power you need for power outages and emergencies. For projects, the 439cc Champion single-cylinder OHV engine has what it takes to handle multiple power tools at the same time so you can get the job done.

Champion’s Volt Guard™ built-in surge protector prevents overloads and keeps your equipment safe from spikes in voltage and the voltmeter allows you to easily monitor power output anytime.

The convenient electric start includes a battery, plus Cold Start Technology ensures a quick start in cold weather.

At 9000 starting watts and 7200 running watts, this unit can handle it all in an outage – lights, refrigerator, modem/router, security system, window AC, furnace blower, TV, computer, phone charger and more.

Plenty of outlets are available, including 120/240V 30A (L14-30R) and 120V 30A (L5-30R) locking outlets and four 120V 20A household outlets (5-20R).

Fill up the 6.1-gallon tank of gasoline, run at 50% and enjoy up to 8 hours of power. From 23 feet, the noise level is 74 dBA, a bit louder than a vacuum cleaner.

Designed for safety with convenient push-to-reset circuit breakers and a low oil shut-off sensor, this unit has a 1.2-quart oil capacity (recommended 10W-30) and comes with an oil funnel for easy changes.

Mobility is never an issue with this rugged generator. The foldaway U-shaped handle and never-flat tires in the included wheel kit make it a cinch to move your power where you need it.

This generator is EPA certified. Buy with confidence – our reliable support and network of service centers will back your purchase up with a 3-year limited warranty and FREE lifetime technical support.

What’s included

Oil Funnel
Wheel Kit
Engine Oil
Battery

Powerful

At 9200 starting watts and 7200 running watts, enjoy up to 8 hours of run time on a full tank of gasoline with a noise level of 74 dBA from 23 feet

Electric start

Power up the 439cc Champion engine with the 3-position ignition switch, battery included, plus built-in Cold Start Technology for easy starts in cold weather

Outlets

120/240V 30A and 120V 30A locking outlets and four 120V 20A outlets

Volt Guard™

Prevents overloads and keeps your valuable equipment safe from voltage spikes, plus a voltmeter allows you to monitor power output at a glance

Champion Support

Champion Support

Specs

Specs

Gasoline Starting Watts	9000W
Gasoline Running Watts	7200W
Gasoline Starting Amps at 120V	75.0A
Gasoline Starting Amps at 240V	37.5A
Gasoline Running Amps at 120V	60.0A
Gasoline Running Amps at 240V	30.0A
Volts	120/240
Frequency	60Hz
Outlets	120/240V 30A Locking (L14-30R), 120V 30A Locking (L5-30R), 120V 20A Duplex (5-20R) (2)
GFCI Outlets	No
Covered Outlets	No
Covered Circuit Breakers	No
Gasoline Run Time at 1/2 Load	8.0 h.
Noise Level	74.0 dBA
Parallel Capability	No
DC Operation	No
Voltmeter	Yes
Automatic Voltage Regulation	Yes
Battery	Yes
Start Type	Recoil, Electric
Engine Brand	Champion
Engine Size	439cc
Engine Type	4-stroke
Engine Speed	3600
Fuel Type	Gasoline
Fuel Gauge	No
Gasoline Capacity	6.0 gal.
Gasoline Tank Material	Steel
Engine Oil Type	10W-30
Engine Oil Capacity	1.2 qt.
Engine Oil Included	No
Low Oil Shut-Off	Yes
Wheels	Yes
Wheel Type	Solid
Wheel Diameter	9.5 in.
PGMA G300-2018 Compliant	No
CSA Listing	Yes
EPA Certified	Yes
CARB Compliant	No

Dimensions

Length	27.4 in.
Width	27.4 in.
Height	26.0 in.
Weight	195.8 lb.

Downloads

Downloads

Manuals

Champion 7200-Watt Portable Generator (CA)
