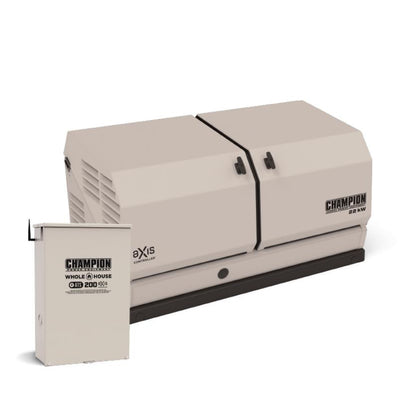

The Champion Power Equipment 100304-200A Home Standby Generator System includes 22 kW aXis Home Standby Generator and 200A aXis ATS Whole House Automatic Transfer Switch. Equipped with aXis technology for reduced costs, increases efficiency, and peace of mind while ensuring security and convenience for your family during an emergency. Enjoy totally automatic, seamless power to your home during an outage.

Champion aXis 22 kW generator features aXis Controller™ with 4-inch color display and Power Line Carrier technology, which uses your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time on installation.

With aXis Wi-Fi Direct your installer can use a tablet or cell phone to program your generator meaning less hassle, faster setup, and lower cost.

The Whole House automatic transfer switch backs up your home’s 200-amp distribution panel and has the ability to manage your high-demand appliances by using our aXis Load Management Modules model 100868 (sold separately). With the ability to add unlimited modules, never worry that you’ll overload your HSB system since aXis monitors your generator output and only allows operation of your high-demand appliance when there’s enough generator power available.

The innovative advanced airflow design stands out from the competition and allows your HSB to operate at cooler temperatures which extends the life of your engine. Your HSB is up to 20% more fuel efficient than leading competitors with 3.6 gal/hr using propane and 270.2 ft3/hr using natural gas at rated load.

Be confident your HSB will hold up to any weather thanks to the aluminum-zinc coated steel enclosure, offering better structural rigidity with the oxidation resistance of an all-aluminum enclosure, plus the gullwing opening allows for easy service and maintenance access.

The starting system operates in temperatures ranging from -22° F to 104° F, never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when the power goes out, and returns to standby when power is restored.

The 999cc V-Twin Champion engine provides 22-kilowatts of continuous power on propane and 19.8-kilowatts on natural gas. This 22 kW-rated unit produces 91.7 amps at 240 volts on propane and 82.5 amps at 240 volts on natural gas.

The residential-friendly 67 dBA is a little louder than normal conversation.

The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.

This generator is available for all 50 states. Buy with confidence – Champion Support will back your purchase with FREE lifetime technical support, a 10-year limited warranty on the generator and a 2-year limited warranty on the ATS.

What’s included

Battery Jumper Wire
Gas Inlet Flex Hose
Gas Inlet Hose
Keys for Door Lock
Master Mixer Assembly

Powerful

Up to 20% more fuel efficient than leading competitors, this 22-kilowatt generator provides 22,000 watts of continuous power on propane and 19,800 watts on natural gas, with no refueling, no manual operation, and no extension cords needed

Efficient

With less wiring and lower installation costs thanks to our Power Line Carrier technology, you’ll save time and money installing your new HSB, easily manage your high-demand appliances with aXis technology, plus advanced airflow design extends engine life

Quiet Operation

Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 67 dBA noise level and performs self-diagnostic tests

Reliable

24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with aluminum-zinc coated steel for weatherproofing and oxidation-resistance

Champion Support

Includes 10-year limited warranty with FREE lifetime technical support from dedicated experts

Specs

Specs

Propane Rated Watts	22000W
Natural Gas Rated Watts	19800W
Propane Rated Amps at 120V	183.4A
Propane Rated Amps at 240V	91.7A
Natural Gas Rated Amps at 120V	165A
Natural Gas Rated Amps at 240V	82.5A
Rated Volts	120/240
Rated Frequency	60Hz
Phase	Single
Propane Fuel Consumption at 1/2 Load	2 gal/h
Propane Fuel Consumption at Full load	3.6 gal/h
Natural Gas Fuel Consumption at 1/2 Load	173.4 ft3/h
Natural Gas Fuel Consumption at Full Load	270.2 ft3/h
Main Line Circuit Breaker	100A
Starting System	Automatic 24V
Operational Volume	67 dBA
Cooling System	Air Cooled
AC Ton Rating	5T
Generator Enclosure	Aluminum-Zinc Coated Steel
Generator Mounting Pad	Composite
Engine Brand	Champion
Engine Size	999cc
Engine Type	4-stroke V-Twin
Engine Speed	3600
Fuel Type	Propane (LPG), Natural Gas (NG)
Engine Oil Type	Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity	3 qt.
Engine Oil Included	Yes
Low Oil Shut-Off	Yes
ETL Listing	cETLus
EPA Certified	Yes
Switch Type	Whole House
Switch Amps	200A
Switch Volts	120/240
Switch Circuits	Whole House
Switch Poles	2
Response Time	Adjustable (0.5-30 sec.)
Load Management	Yes
Service Entry Rated	Yes
Switch Enclosure	NEMA 3R

Dimensions

Length	54.0 in.
Width	30.3 in.
Height	43.9 in.
Weight	632.5 lb.

Downloads

Downloads

22kW aXis FactSheet

Operator’s Manual

Installation Manual

Product	Download
Transfer Switch (aXis Models)	Installation Manual for Transfer Switch (ATS) in English Installation Manual for Transfer Switch (ATS) in Español Installation Manual for Transfer Switch (ATS) in Français
Generator (aXis Models)	Installation Manual for Generator (aXis Models 100515 & 100304) English Installation Manual for Generator (aXis Models 100515 & 100304) Español Installation Manual for Generator (aXis Models 100515 & 100304) Français

Parts Information

Product	Download
Generator (Model 100304)	Parts Information for Generator (Model 100304) in English Parts Information for Generator (Model 100304) in Español Parts Information for Generator (Model 100304) in Français
Transfer Switch (Model 102006)	Parts Information for Transfer Switch (Model 102006) English Parts Information for Transfer Switch (Model 102006) Español Parts Information for Transfer Switch (Model 102007) Français
