Description

Description

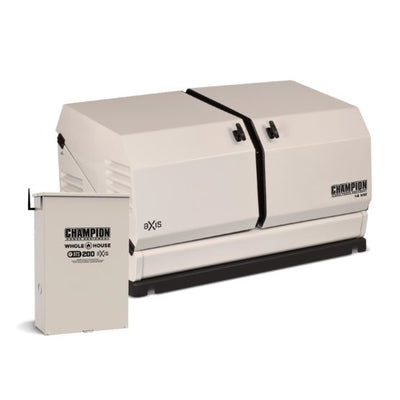

The Champion Power Equipment 100839 Home Standby Generator System includes 14kW aXis Home Standby Generator and 200A aXis ATS Whole House Automatic Transfer Switch.

This generator never needs refueling operating on your home’s NG or LP fuel supply, starts automatically when utility power goes out, and turns off automatically when utility power is restored. The battery keeps a charge and operates in temperatures ranging from -22° to 104° F.

The Champion aXis platform is a programmable, upgradable home standby system. The digital aXis Controller™ is equipped to provide monitoring and protection for the HSB. Power Line Carrier technology allows the system to communicate using your home’s existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time. With aXis Wi-Fi Direct your installer can use a tablet or phone to program your generator meaning faster setup and lower cost.

This automatic Whole House transfer switch backs up your home’s 200-amp distribution panel and manages your high-demand appliances using our aXis Load Management Modules. Choose from four priority levels for each appliance from “must haves” to “nice to haves.” Multiple devices can share the same priority allowing for an unlimited number of loads that can be managed. If your generator nears capacity, high-demand appliances are automatically turned off according to their priority level to avoid overload. Load Management Modules also use Power Line Carrier technology simplifying installation.

Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with CSA standards for Canada.

Buy with confidence – Champion Support and our nationwide network of service centers will back your purchase up with FREE lifetime technical support, a 10-year limited warranty on the generator and a 2-year limited warranty on the ATS.

What’s included

HSB Enclosure Keys
LPG Jets
Jet Change Tool
Oil Drain Pan
Battery Cables & Hardware
Flexible Fuel Line

Whole House Power

The aXis ATS200 Whole House Automatic Transfer Switch provides managed power for your home with wi-fi setup and the ability to manage unlimited high demand loads using 4 priority levels

Quietest-in-Class

Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 62 dBA noise level

Reliable

24-volt starting system operates in sub-zero or extreme heat (between -22° F and 104° F) with no cold weather kit necessary, plus the generator performs customizable self-diagnostic tests

Powerful

The 14-kilowatt generator provides 14,000 watts of continuous power on propane and 12,500 watts on natural gas, with no refueling, no manual operation and no extension cords needed

Champion Support

Includes a 10-year limited warranty, the longest standard warranty available on home standby generators in the market, with FREE lifetime technical support from dedicated experts

Specs

Specs

Propane Rated Watts	14000W
Natural Gas Rated Watts	12500W
Propane Rated Amps at 120V	116.7A
Propane Rated Amps at 240V	58.3A
Natural Gas Rated Amps at 120V	104A
Natural Gas Rated Amps at 240V	52A
Rated Volts	120/240
Rated Frequency	60Hz
Phase	Single
Propane Fuel Consumption at 1/2 Load	1.6 gal/h
Propane Fuel Consumption at Full load	2.6 gal/h
Natural Gas Fuel Consumption at 1/2 Load	116.5 ft3/h
Natural Gas Fuel Consumption at Full Load	180.1 ft3/h
Main Line Circuit Breaker	65A
Starting System	Automatic 24V
Operational Volume	62 dBA
Cooling System	Air Cooled
AC Ton Rating	5T
Generator Enclosure	Steel
Generator Mounting Pad	Composite
Engine Brand	Champion
Engine Size	754cc
Engine Type	4-stroke
Engine Speed	3600
Fuel Type	Propane (LPG), Natural Gas (NG)
Engine Oil Type	Mobil 1 5W-30 Full Synthetic
Engine Oil Capacity	1.7 qt.
Engine Oil Included	No
Low Oil Shut-Off	Yes
ETL Listing	cETL
EPA Certified	Yes
Switch Amps	200A
Switch Volts	120/240
Switch Type	Whole House
Switch Circuits	Whole Service
Switch Poles	2
Load Management	Yes
Service Entry Rated	Yes
Switch Enclosure	NEMA 3R

Dimensions

Length	49.0 in.
Width	28.0 in.
Height	28.0 in.
Weight	439.0 lb.

Downloads

Downloads

14kW aXis FactSheet

Operator’s Manual

Installation Manual

Product	Download
Generator (aXis Models)	Installation Manual for Generator (aXis Models) in English Installation Manual for Generator (aXis Models) in Français
Transfer Switch (Model 102007)	Installation Manual for Transfer Switch (Model 102007) in English Installation Manual for Transfer Switch (Model 102007) in Français

Parts Information

Product	Download
Transfer Switch (Model 102007)	Parts Information for Transfer Switch (Model 102007) in English Parts Information for Transfer Switch (Model 102007) in Français
Generator (Model 100515)	Parts Information for Generator (Model 100515) in English Parts Information for Generator (Model 100515) in Français
