Product Description

No Sales Tax! (Most States)

This Brave VH1730GX 30 ton log splitter that has the convenient option to split Vertical and Horizontal. The orange powder coated wood splitters were designed with durability in mind.

The VH1730GX comes standard with the Honda GX200 engine. The log splitter has an average 14 second cycle time, which is a great combination for both speed and power.

Log Cradles (Included) – HV units catch falling wood saving you from bending over and picking up split wood off the ground and splitting again. Just imagine the amount of extra times you could save from bending over picking up firewood to split again from each cord of wood?

Options:

Drainzit Oil Hose Kit – Drainzit oil hoses make changing oil easier and cleaner! Drainzit oil drain hoses allow you to change the oil in your small, gas-powered engine without tipping, dismounting, or modifying your engine in any way.

Log Splitter Cover – High quality log splitter cover with draw strings to protect your investment from the elements.

Owners Manual

Brochure Comparison

Please note – You must select the lift gate option if you need a lift gate delivery, otherwise you will be responsible for taking the crate off the back of the freight truck. All deliveries are curbside delivery only.

Detailed Specifications

Beam Structure:

Industrial I-Beam

Splitting Wedge:

8″ High carbon steel

Operating Position:

Horizontal / Vertical

Force / Tonnage:

30 Ton – 60,000 lbs

Cylinder:

5″ x 24″ trunion mount, 2″ rod

Cycle Time:

14 Seconds (Approx)

Log Opening:

25 Inches

Wheels & Tires:

High-Speed, 4.80 x 8

Road Towable:

2″ Coupler & Safety Chains

Engine:

Honda GX200 (200cc)

Working Height:

30 Inches

Size:

83″ long x 41″ high x 41″ wide

Hydraulic System:

8.5 gallon capacity (tank, cylinder, and hoses)

Safety Control Valve:

Detent, Auto Return

2 Stage Pump:

13 Gallons Per Minute

Shipping Weight:

650 LBS

Log Dislodger:

Included

Consumer Warranty:

2 Year Limited / 2 Year Engine

Commercial Warranty:

1 Year Limited / 2 Year Engine

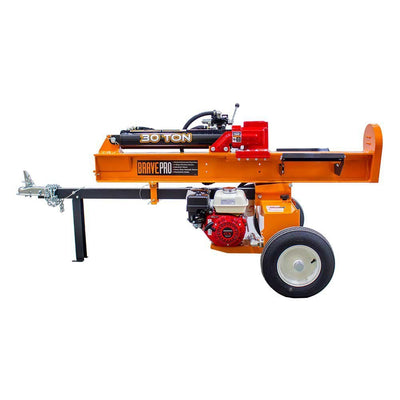

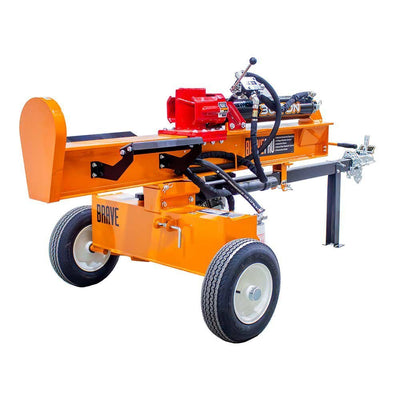

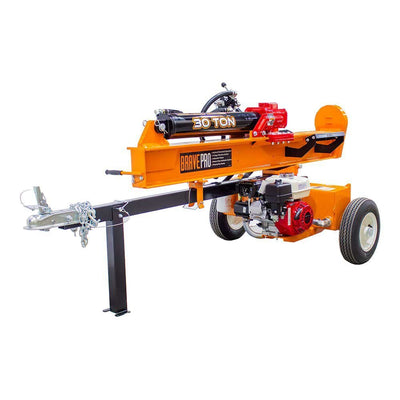

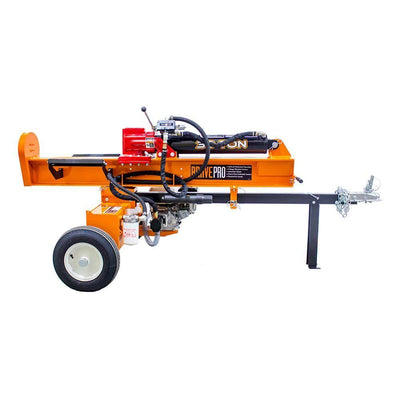

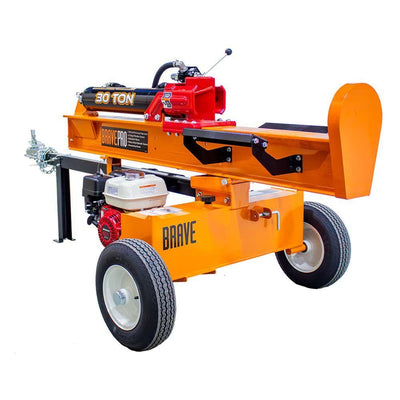

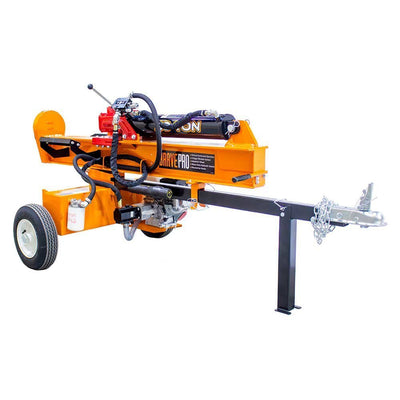

Brave 30-Ton Horizontal / Vertical Log Splitter Honda GX200 (VH1730GX)
