Product Description

No Sales Tax! (Most States) – Free Shipping!

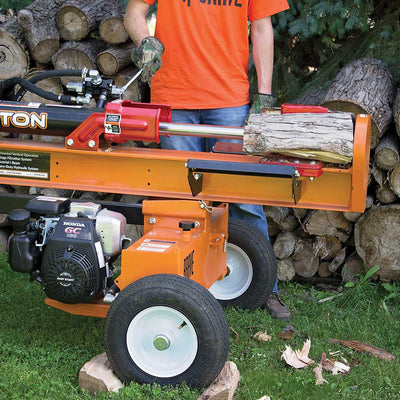

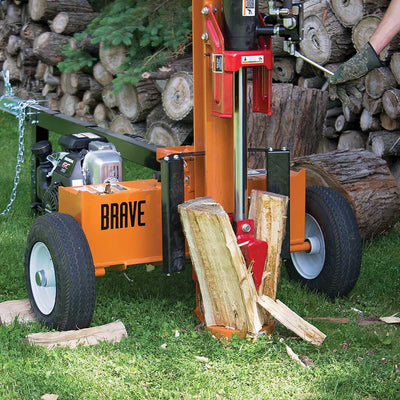

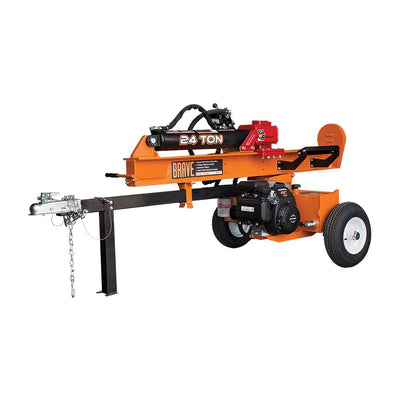

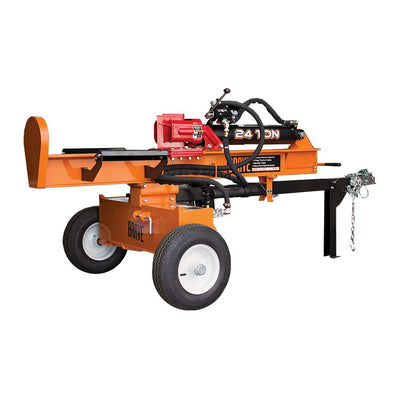

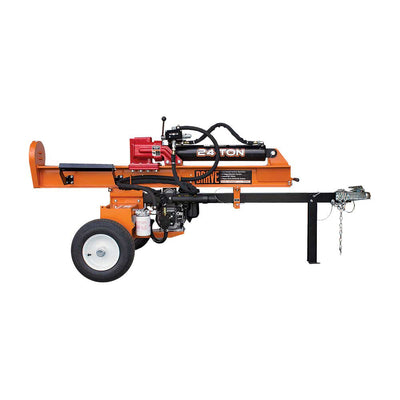

This Brave VH1724GC 24 ton log splitter that has the convenient option to split Vertical and Horizontal. The orange powder coated wood splitters were designed with durability in mind.

The VH1724GC comes standard with the Honda GC160 engine. We also have this same log splitter with a Honda GX160 commercial engine. You can see that Brave log splitter VH1724GX here. The log splitter has an average 14 second cycle time, which is a great combination for both speed and power.

Log Cradles (Included) – HV units catch falling wood saving you from bending over and picking up split wood off the ground and splitting again. Just imagine the amount of extra times you could save from bending over picking up firewood to split again from each cord of wood?

Options:

Log Splitter Cover – High quality log splitter cover with draw strings to protect your investment from the elements.

Engine Guard – Protects your engine from falling logs.

Fender Kit – Add a fender kit to help spraying debris during transport.

**Optional Rush Processing – We are pleased to offer RUSH PROCESSING for in stock items. Your equipment order is guaranteed to ship from our warehouse as fast as SAME DAY or by next business day (excluding Holidays). Tracking information will be e-mailed as soon as your order is processed. You will have the ability to track your order all the way through final delivery. If we don’t get it shipped out by next business day its simple, you don’t get charged the rush processing fee.

Brochure Comparison

Please note – You must select the lift gate option if you need a lift gate delivery, otherwise you will be responsible for taking the crate off the back of the freight truck .

Detailed Specifications

Beam Structure:

Industrial I-Beam

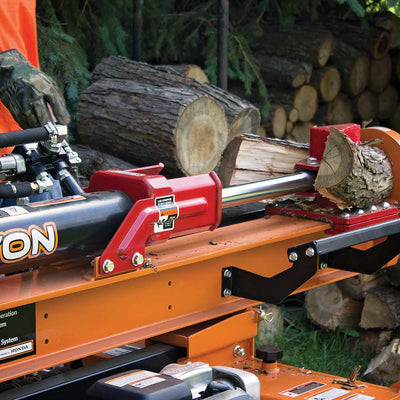

Splitting Wedge:

8″ High carbon steel

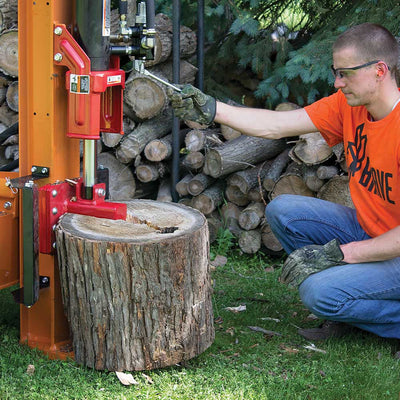

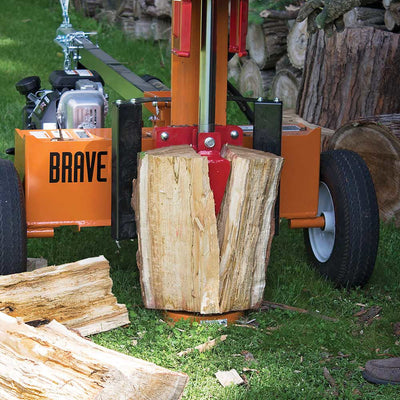

Operating Position:

Horizontal / Vertical

Force / Tonnage:

24 Ton – 48,000 lbs

Cylinder:

4″ x 24″ trunnion mount, 2″ rod

Cycle Time:

13 Seconds (Approx)

Log Opening:

25 Inches

Wheels & Tires:

High-Speed, 4.80 x 8

Road Towable:

2″ Coupler & Safety Chains

Engine:

Honda GC160 (160cc)

Working Height:

28 Inches

Size:

83″ long x 41″ high x 41″ wide

Hydraulic System:

8 gallon capacity (tank, cylinder, and hoses)

Safety Control Valve:

Detent, Auto Return

2 Stage Pump:

11 Gallons Per Minute

Shipping Weight:

650 LBS

Log Dislodger:

Included

Consumer Warranty:

2 Year Limited / 2 Year Engine

Commercial Warranty:

1 Year Limited / 2 Year Engine

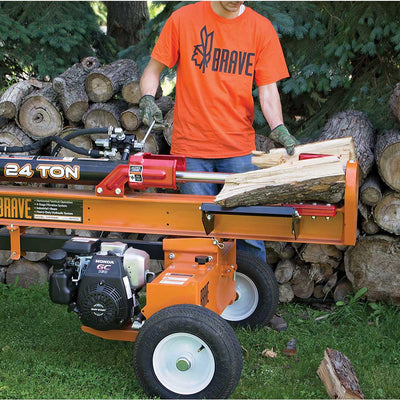

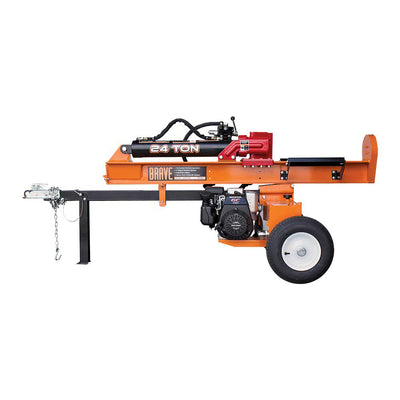

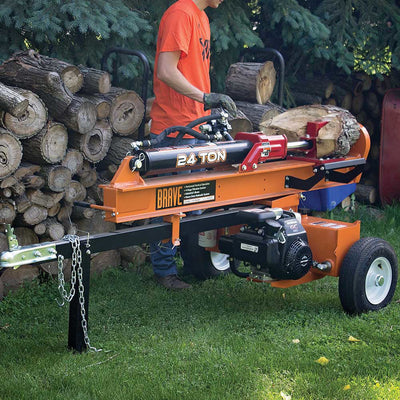

Brave 24 Ton Horizontal / Vertical Log Splitter (VH1724GC)
