Special Bonus: Free Liftgate Delivery with purchase – $50 Value

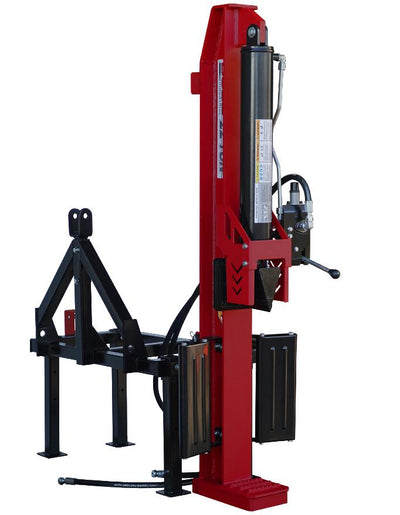

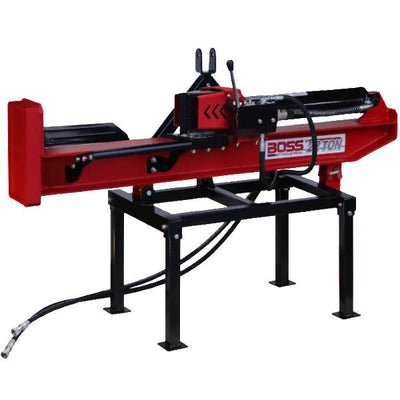

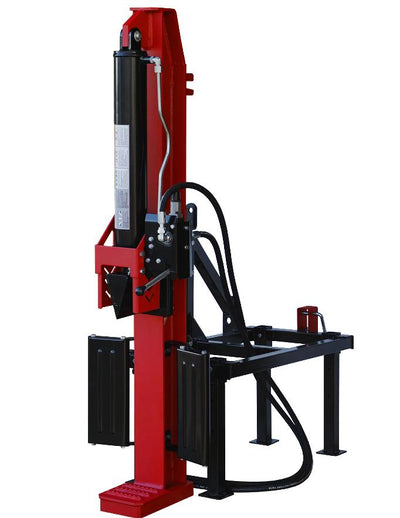

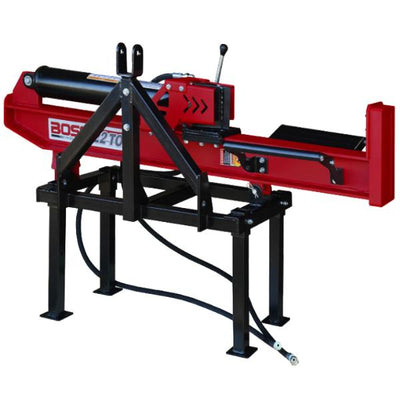

The Boss Industrial 22 ton 3-point log splitter runs off your tractor’s hydraulics and can split in both the horizontal or vertical position.

This 3 point wood splitter is fully adjustable for any category 1 or category 2, 3-point hitch size. Working height is from waist level and can be lowered to a near ground position, or as low as your 3-point arms can go allowing you to set it at a working height that’s comfortable for you. You can also run in the vertical position for those heavier logs. No need to lift them onto the tray!

It is recommended that your flow rate be at least 8 GPM. Actual tonnage and split time will depend on your tractor’s hydraulic output. Fasted split times will average around 10 seconds, and the specific tonnage will depend on your tractor’s output.

Note: The tonnage ratings on all 3-point splitters are rated at “maximum potential” per the title and description. The actual PSI of your tractor and other potential environmental conditions can impact actual tonnage and cycle times.

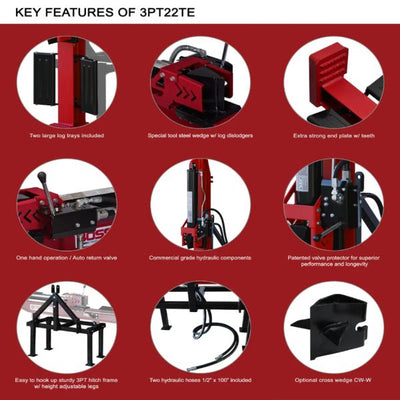

Full Specifications

Max 22-tons of splitting force
8-Inch High Carbon Steel Wedge
Tractor dependent
One-handed operation
Automatic Return
Vertical & horizontal positioning
3-position control
Extra-large log trays
Max Splitting Length: 25 inches
Splitting Wedge Height: 7 inches
Cylinder Bore: 4 inches
Hoses: 2 – 1/2″ – 8′ length
Connectors – 1/2″ NTP Thread – Not included
Crated dimensions: 73 x 24 x 25 inches
Net Weight: 406 lbs
Gross Weight: 565 lbs
Accessories available
2-year residential, 180-day commercial warranty
Some assembly required
SKU: 3PT22TE
Boss Industrial

Owners Manual
