Product Description

Free Shipping!

Our Upside down mounted 30 ton skid loader log splitter is great for splitting the extra large logs that you don’t want to even think about lifting. The 30 tons of ram force and the sturdy tubular design beam allows you to pick these large logs off the ground and split them without ever leaving your cab.

For a limited time we are including hoses and standard flat face disconnects with this unit. This unit has a 25 inch opening.

Please note: You can customize this log splitter:

You have two options:

4 Way Wedge – Split logs into 4 pieces. This 4 way wedge bolts on the slide of the beam. If ordered, you get both the single head wedge and the 4 way wedge. 4 way wedge will reduce opening size by 3″.
30″ Opening – Increase your opening size by 6 inches to a 5″ x 30″ cylinder to split longer pieces of wood.

Questions? Feel free to contact us at 888-706-2434.

Some assembly is required. Images may slightly differ from actual product if there are upgrades or slight changes made. If you have a Case 1840 please inform us at the time of order as this has a different mount.

Detailed Specifications

Tonnage:

30 Ton (60,000 lbs)

Cylinder:

5″ x 24″

Opening Size:

25 Inch Opening Length

Beam:

6 x 3 Tubular Design

Color:

Black Only (Safety Paint)

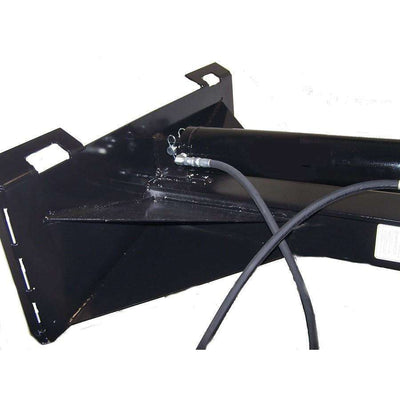

Mounting Plate:

Universal System (2 quick attach lock handle type)

Weight:

515 lbs

Length:

78 Inches

Wedge:

Single 10″ High

Warranty:

1 Year

Hoses & Connectors:

Included – Flat Face Disconnects

Made in USA:

No

4 Way Wedge:

Optional

30″ Stroke Cylinder:

Optional 5″ x 30″

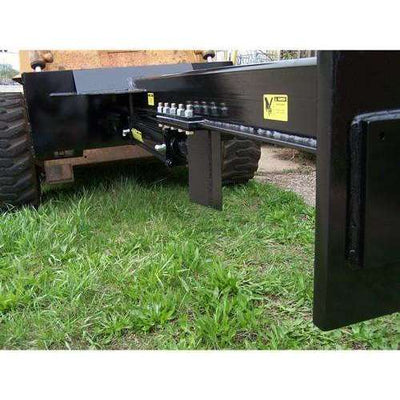

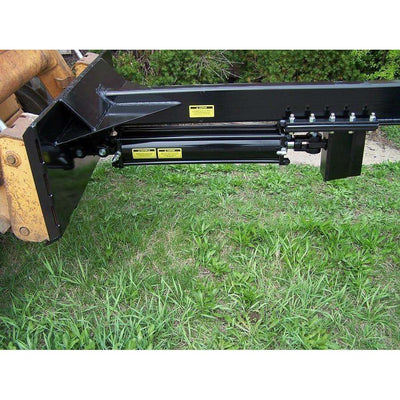

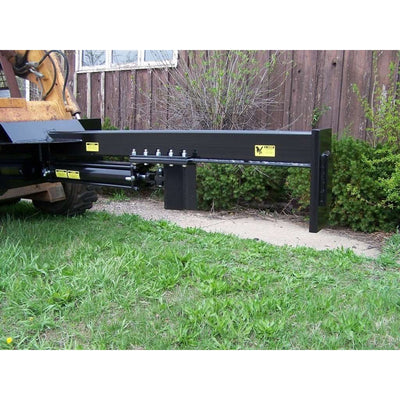

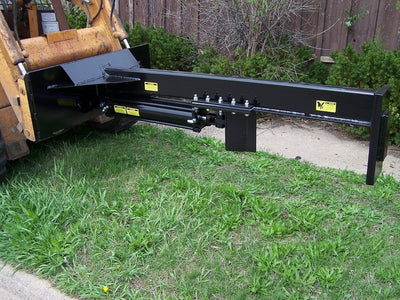

30 Ton Upside Down Skid Steer Log Splitter Attachment (SSUD30)
