Product Description

Free Shipping!

This 30 Ton horizontal attachment for your skid loader takes all the hard work out of splitting firewood. For a limited time hoses and connectors come free with this unit, just hook it up to your machine and your ready to get to work.

Please note: You can customize this log splitter just the way you want it!

You have 3 options:

4 Way Wedge – Split logs into 4 pieces. 4 way wedge just slips over existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 3″.
Horizontal/Vertical – HV units can split both in the horizontal and vertical positions.
Log Cradles – HV units can catch falling wood saving you from bending over and picking up wood off the ground(when splitting horizontal). Horizontal units will hold logs in place.

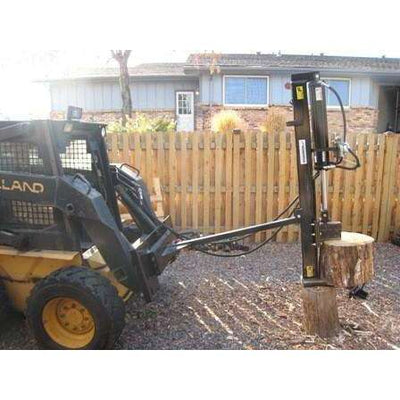

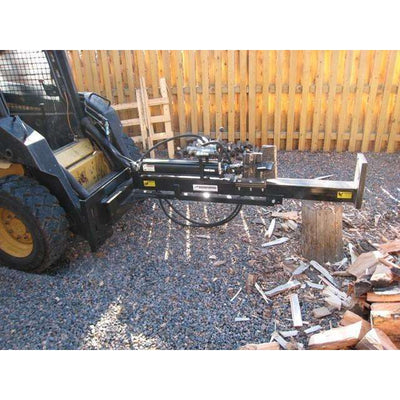

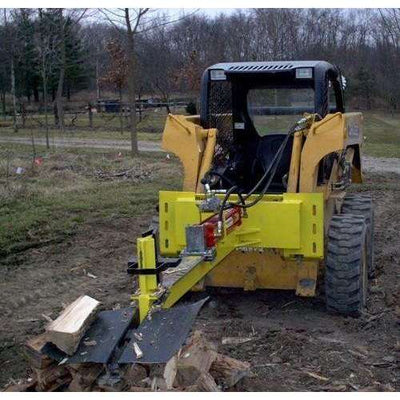

We are displaying both a “horizontal” unit (yellow pictured) and a “horizontal vertical” (HV) wood splitter (black pictured). Please choose your option as to which one suits your needs. If you have a Case 1840 please inform us at the time of order as this has a different mount.

Made in the USA!

See options above the big red “add to cart” button for pricing and pictures. As you select them it will built and price your splitter as you go! Questions? Feel free to contact us at 888-706-2434.

Please note these log splitters are delivered via freight truck. Residential deliveries that require a lift gate delivery will cost $85 extra.

Detailed Specifications

Tonnage:

30 Ton (60,000 lbs)

Cylinder:

5″ x 24″

Opening Size:

25 Inch Opening Length

Control Valve:

Detent Auto Return

Beam:

6 x 3 Tubular Design – 6″ Top plate

Color:

Black Only

Mounting Plate:

Universal ( 2 quick attach lock handle type)

Weight:

560 lbs

Length:

78 Inches

Wedge :

Single 10″ High

Warranty :

1 Year

Hoses & Connectors:

Included with flat face disconnects

Made in USA:

Yes!

4 Way Wedge:

Optional

Horizontal / Vertical:

Optional

Log Cradles:

Optional

30″ Stroke Cylinder:

Optional 5″ x 30″
