Product Description

Limited Time Free Shipping!

3 Point 30 Ton Horizontal Vertical Tractor Wood Splitter

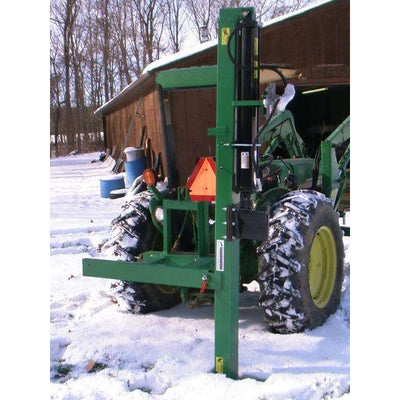

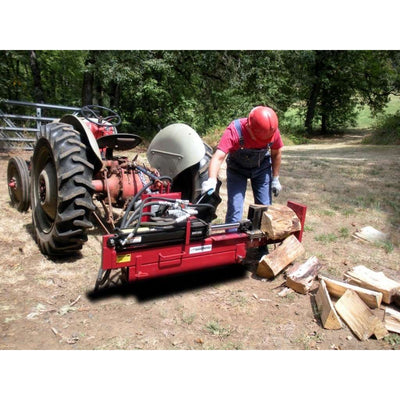

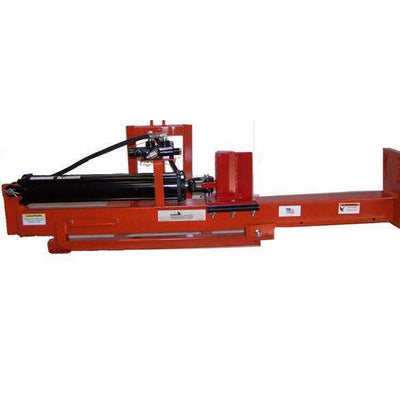

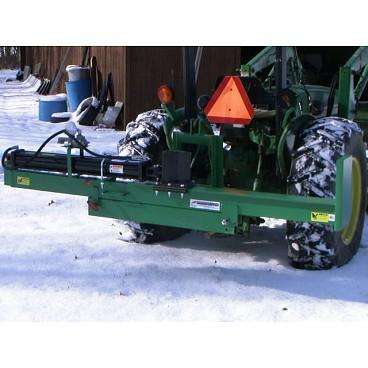

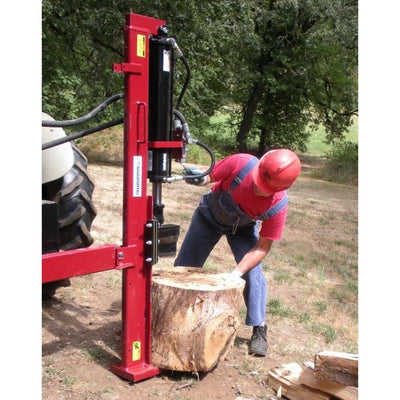

Our 30 ton (3PT30HV) HV log splitter for tractors made by Ram Splitter are American made built to last. This 30 ton 3 point log splitter is a work horse that will split both in the horizontal and vertical position for those large logs you don’t even want to think about trying to lift.

The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included. Top link pins or anything else that is related to your tractor for hardware are not included. All connections including hoses are included with PTO kits.

It is recommended that you have a flow rate of 12GPM or higher for this log splitter, otherwise you may run into very log cycle times. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump. Please see options.

This log splitter is fully customizable with several options:

Color Choice – At no additional cost you get to choose your color: Black, Kubota orange, John Deere green or Ford blue.

PTO Kit – PTO (Power Take Off) kit runs completely off your PTO on your tractor. There is no need to worry about any of your hydraulics as this system is self contained which includes a tank and a 21GPM PTO pump. Hook up the pump to the PTO, fill the tank with fluids and your ready to split wood. This PTO pump is designed for 540RPM at the PTO. 35HP minimum tractor required.

4 Way Wedge – Split logs into 4 pieces. 4 way wedge just slips over the existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 3″. Split one log once instead of 3 times to get 4 pieces.

Log Cradles – HV units catch falling wood saving you from bending over and picking up split wood off the ground and splitting again. Just imagine the amount of extra times you could save from bending over picking up firewood to split again from each cord of wood? (Tip: If you don’t get get log cradles at least make a table to catch that wood!)

Opening Size – The standard opening size on this unit is 26″. The cylinder stroke is 24″ making it a 5″ x 24″ cylinder. Looking for a bigger opening for that wood boiler or stove that can take larger pieces? We offer a 5″ x 30″ (32″ opening) stroke cylinder. Less cuts, less splits.

This log splitter is not regularly in stock. Average ship out time is 7-15 business days.

Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.

Detailed Specifications

Beam Structure:

Tubular design 3″ wide x 5″ tall. 6″ Top plate reinforced heavy-duty

Splitting Wedge:

10″ High

Operating Position:

Horizontal / Vertical

Force / Tonnage:

30 Ton (Approx depending on tractor PSI)

Cylinder:

5″ x 24″ (Optional 30″)

Cycle Time:

15-20 Seconds (Approx depends on tractor GPM)

Log Opening:

25 Inches

Working Height:

You adjust with your 3 point hitch

Safety Control Valve:

Detent, Auto Return

Operation Weight:

500 LBS

Made in USA:

Yes

Color:

Choice: Black, Orange, Green, Blue

Warranty:

1 Year

Shipping:

Freight – Limited time free shipping

4 Way Wedge:

Optional

PTO Driven:

Optional

Log Cradles:

Optional

30 Ton Horizontal Vertical Tractor 3pt Log Splitter (3PT30HV)
