Product Description

Limited Time Free Shipping!

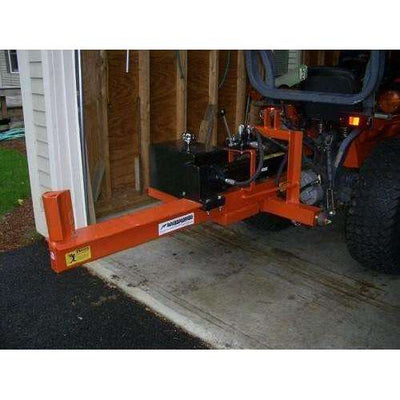

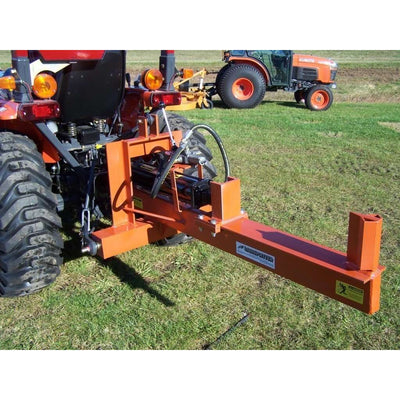

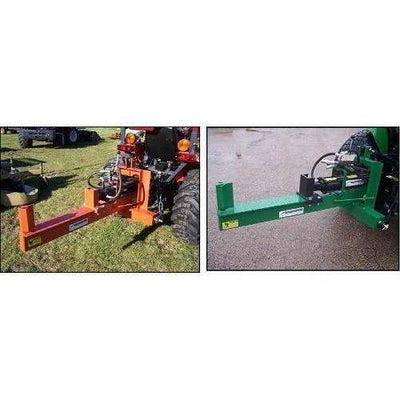

3 Point 30 Ton Horizontal Tractor Log Splitter

Our 30 ton (3PT30H) wood splitters for tractors made by Ram Splitter are built with one thing in mind, power. If you have the tractor to push this log splitter then this one of the most cost effective ways to split firewood. This log splitter will push up to 60,000lbs of force for those tough nasty logs.

The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included. Top link pins or anything else that is related to your tractor for hardware are not included. All connections including hoses are included with PTO kits.

It’s recommended that you have a flow rate of 12GPM (the more the better) or higher for this log splitter, otherwise you would be looking at a very slow cycle time. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump. Please see options.

This log splitter is fully customizable with several options:

Color Choice – At no additional cost you get to choose your color: Black, Kubota orange, John Deere green or Ford blue.

PTO Kit – PTO (Power Take Off) kit runs completely off your PTO on your tractor. There is no need to worry about any of your hydraulics as this system is self contained which includes a tank and a 21GPM PTO pump. Hook up the pump to the PTO, fill the tank with fluids and your ready to split wood. This PTO pump is designed for 540RPM at the PTO. 35 HP minimum tractor required.

4 Way Wedge – Split logs into 4 pieces. 4 way wedge just slips over the existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 3″. Split one log once instead of 3 times to get 4 pieces.

Log Cradles – These cradles are welded on the beams on each side of the opening between the wedge and the push plate on the cylinder. This eliminates the need from having to hold the log into place with your hand.

Opening Size – The standard opening size on this unit is 26″. The cylinder stroke is 24″ making it a 5″ x 24″ cylinder. Looking for a bigger opening for that wood boiler or stove that can take larger pieces? We offer a 5″ x 30″ (32″ opening) stroke cylinder.

MADE IN THE USA!

This log splitter can also come in a horizontal / vertical configuration where you can split both horizontal or vertical. Please see the 3PT30HV listing.

This log splitter is not regularly in stock. Average ship out time is 7-15 business days.

Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.

Detailed Specifications

Beam Structure:

Tubular design 3″ wide x 6″ tall. 6″ Top plate reinforced heavy-duty

Splitting Wedge:

10″ High

Operating Position:

Horizontal

Force / Tonnage:

30 Ton (Approx depending on tractor PSI)

Cylinder:

5″ x 24″ (Optional 30″ or 36″)

Cycle Time:

10-15 Seconds (Approx depends on tractor GPM)

Log Opening:

25 Inches

Working Height:

You adjust with your 3 point hitch

Safety Control Valve:

Detent, Auto Return

Operation Weight:

475 LBS

Made in USA:

Yes

Color:

Choice: Black, Orange, Green, Blue

Log cradles:

Optional

PTO Driven:

Optional

4 Way Wedge:

Optional

Shipping:

Freight – Limited time free shipping

30 Ton Horizontal Tractor 3pt Log Splitter (3PT30H)
