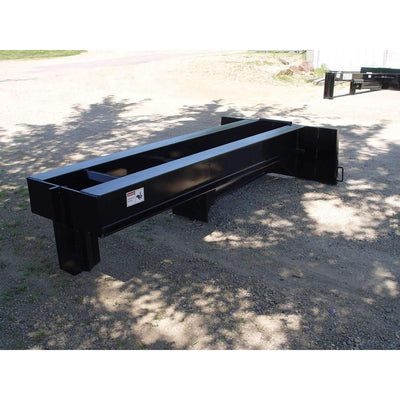

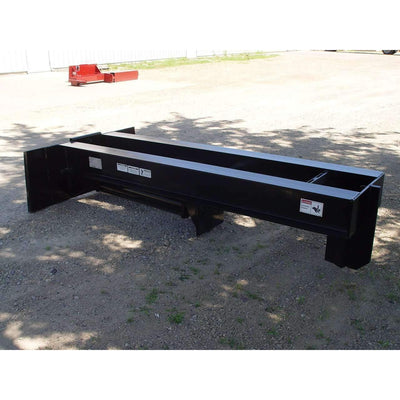

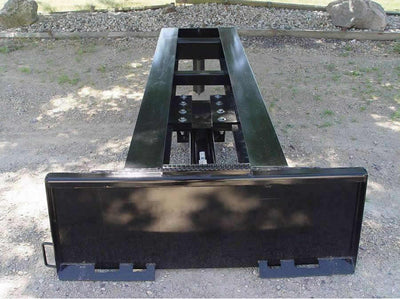

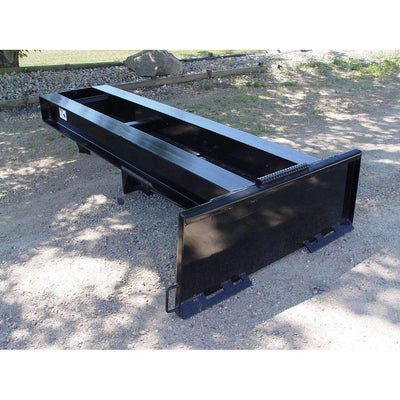

This twin beam wood splitter attaches to your Bobcat or any skid loader converting it into an effective firewood producing machine. The standard opening and cylinder size on this unit is 24″ making the cylinder a 4 x 24. The dual 8″ beams make this the heaviest duty skid steer log splitter we sell and possibly on the market.

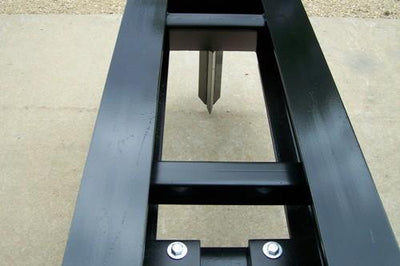

The unique viewing window of the twin beam attachment allows you to see between the beams exactly what and where your splitting on the log. This attachment can also grip the log for positioning over a wagon or truck bed eliminating the task of lifting the split wood into the transport vehicle.

This log splitter is American made and has been a proven effective tool. This unit has the universal mounting plate (two lock down handle type) for quick easy loading. Hoses and flat face disconnects are included. Please feel free to contact us if you have any questions at all at 888-706-2434. Full manufacturer 1 year limited warranty.

This log splitter can be customized with the following options:

4 Way Wedge– This 4 way design is a slip on that bolts on behind the single wedge, making it easy to take on and off. (Select options for picture)

Splitters are sand blasted and wiped down before paint. Splitters are painted black with Diamond Vogel, Pinnacle 460 3.5 VOC 2 part Polyurethane.

Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.

Detailed Specifications

Tonnage:

24 Ton (48,000 lbs)

Cylinder:

4″ x 24″ – Welded cylinder 2.5″ Rod

Beams:

Twin 8″ Heavy duty beams

Color:

Black Only

Mounting Plate:

Universal ( 2 quick attach lock handle type)

Weight:

Shipped Weight 980 lbs

Length:

78

Wedge:

Single 12″ High

Warranty:

1 Year

Hoses & Connectors:

Included

Made in USA:

Yes!

4 Way Wedge:

Optional 22″ Wide

24 Ton Twin Beam Upside Down Skid Steer Log Splitter (TB424)
